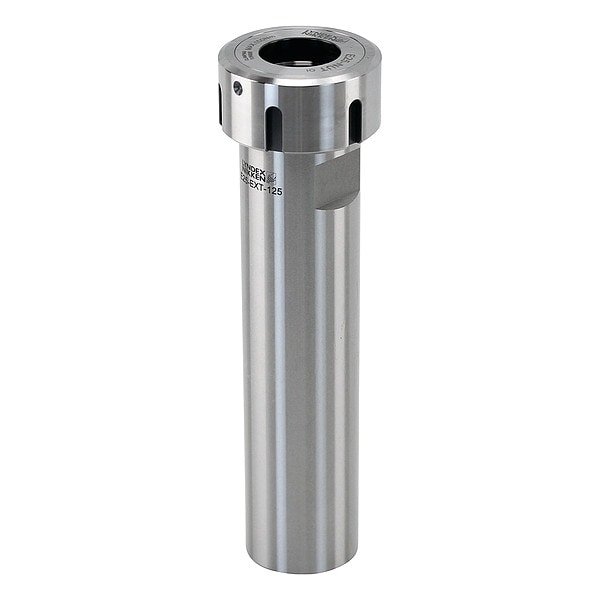

Shank Collet Holder, ER25, 6.85 in. L
| Item | Collet Chuck Extension |
|---|---|
| Shank Type | Straight |
| Shank Shape | Cylindrical |
| Overall Length | 6 in |
| Collet Series | ER25 |
| Shank Dia. | 1-1/4 in |
| Min. Collet Capacity | 0.039 in |
| Nose Dia. | 1.65 in |
| Features | No Disc, Special Nut or Wrench Required |
| Head Length | 1.65 in |
| Shank Diameter | 1-1/4 in |
| Compatible Collet Wrench | 025-SPAN |
| Backup Screw Thread Size | M32 x 1.5 |
| Coolant Supply | Coolant Through |
| Compatible Product Type | ER Collet Chucks |
| Head Diameter | 1.65 in |
| Compatible Nut Model Number | E25-NUT |
| T.I.R. Tolerance | 0 in |
| Speed - Maximum | 23,000 rpm |
| Shank Length | 5 in |
| Compatible Collet Series | ER25 |
| Package Quantity | 1 |
