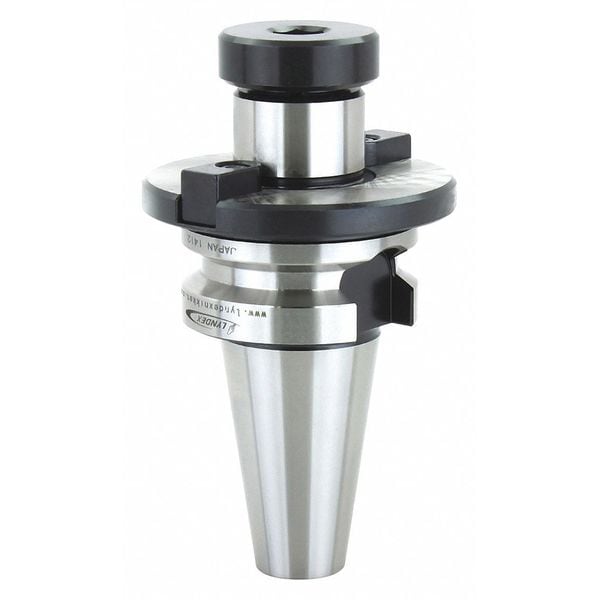

Shell Mill Holder, 1.25in Dia, Project 2in
| Material | Molybdenum |
|---|---|
| Projection | 2.68 in |
| Item | Shell Mill Holder |
| Pilot Length | 0.68 in |
| Lock Screw Thread Size | 5/8"-18 |
| For Use With | Shell Mills |
| Body Dia. | 2.882 in |
| Pilot Dia. | 1-1/4 in |
| Taper Size | BT50 |
| Coolant Fed | Coolant Through |
| Shank Type - Machining | Taper |
| Features | Accommodates Face Mills with Bore Diameters Ranging from 1/2 in (12mm) to 2 in (50mm), Fine Thread Locking Screw Included, Pilot Diameter Sized for Precision Fit with Cutter, Removable/Replaceable Drive Keys Standard |
| Runout | Less than 0 in |
| Speed - Maximum | 30,000 RPM |
| Coolant Supply | Coolant Through |
| Product Type | Shell Mill Holder |
| Body Diameter | 2.882 in |
| Contact Type | Single Contact |
| Lock Screw Size | 0.497 in |
| Pilot Diameter | 1-1/4 in |
| Includes Lock Screw | Lock Screw Included |
| T.I.R. Tolerance | 0 in |
| Measurement System | Inch |
| Package Quantity | 1 |
