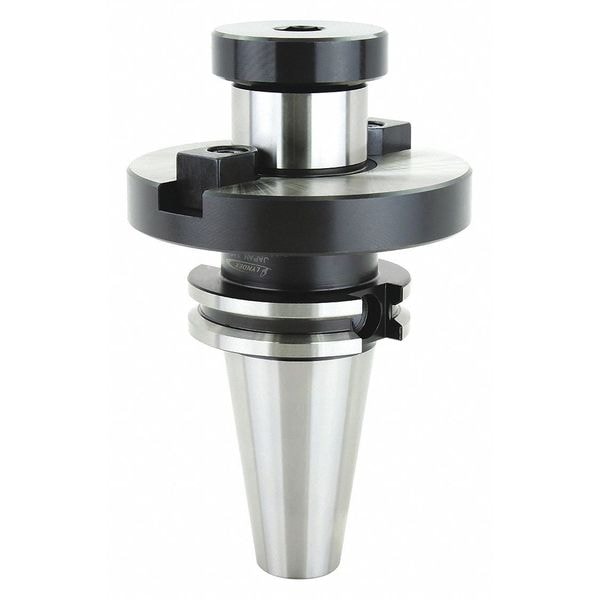

Shell Mill Holder, CAT40, 0.75Dia, 0.67in L
| Material | Molybdenum |
|---|---|
| Item | Shell Mill Holder |
| Lock Screw Thread Size | 3/8"-24 |
| Projection | 2.42 in |
| Body Dia. | 1.929 in |
| For Use With | Shell Mills |
| Taper Size | CAT40 |
| Pilot Length | 0.67 in |
| Pilot Dia. | 3/4 in |
| Coolant Fed | Coolant Through |
| Shank Type - Machining | Taper |
| Features | Accommodates Face Mills with Bore Diameters Ranging from 1/2 in (12mm) to 2 in (50mm), Fine Thread Locking Screw Included, Pilot Diameter Sized for Precision Fit with Cutter, Removable/Replaceable Drive Keys Standard |
| Runout | Less than 0 in |
| Measurement System | Inch |
| Coolant Supply | Coolant Through |
| Pilot Diameter | 3/4 in |
| Lock Screw Size | 0.309 in |
| T.I.R. Tolerance | 0 in |
| Body Diameter | 1.929 in |
| Speed - Maximum | 30,000 RPM |
| Product Type | Shell Mill Holder |
| Contact Type | Single Contact |
| Includes Lock Screw | Lock Screw Included |
| Package Quantity | 1 |
