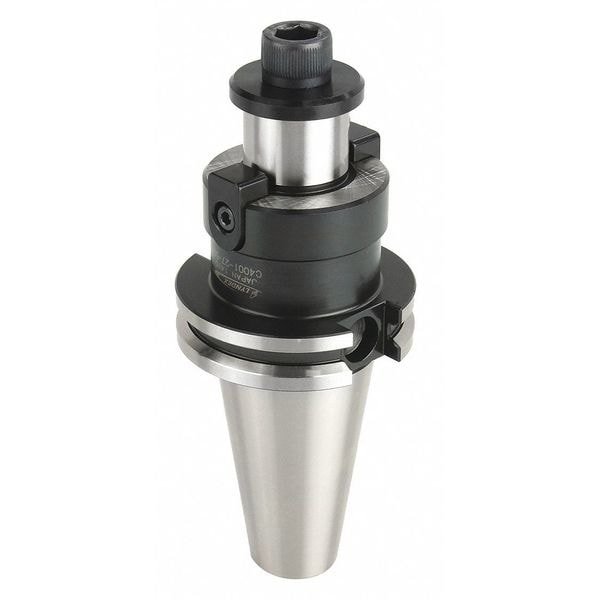

Shell Mill Holder, CAT50, 22mmDia., 19mmL.
| Material | Molybdenum |
|---|---|
| Lock Screw Thread Size | M10x1.5 |
| Projection | 79 mm |
| Item | Shell Mill Holder |
| Taper Size | CAT50 |
| Body Dia. | 40 mm |
| For Use With | Shell Mills |
| Pilot Length | 18 mm |
| Pilot Dia. | 22 mm |
| Coolant Fed | Coolant Through |
| Runout | Less than 0 in |
| Features | Accommodates Face Mills with Bore Diameters Ranging from 1/2 in (12mm) to 2 in (50mm), Fine Thread Locking Screw Included, Pilot Diameter Sized for Precision Fit with Cutter, Removable/Replaceable Drive Keys Standard |
| Shank Type - Machining | Taper |
| Speed - Maximum | 30,000 RPM |
| Contact Type | Single Contact |
| Pilot Diameter | 22 mm |
| Coolant Supply | Coolant Through |
| Body Diameter | 40 mm |
| Includes Lock Screw | Lock Screw Included |
| Lock Screw Size | 0.394 in |
| Measurement System | Metric |
| Product Type | Shell Mill Holder |
| T.I.R. Tolerance | 0 in |
| Package Quantity | 1 |
