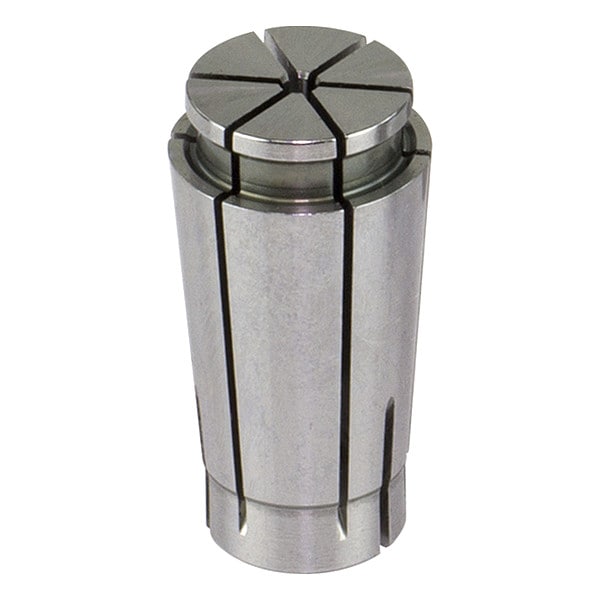

Slim Chuck Collet On Sz, 1/8in, SeriesSK10
| Item | Collet |
|---|---|
| Collet Series | SK10 |
| For Use With | Collet Chucks |
| Size | 1/8" |
| Coolant Through | No |
| Material | Steel |
| Range | On Size |
| Overall Length | 1-13/64 in |
| Coolant Fed | Non-Coolant Through |
| Collet Type | Standard |
| Max. Bore Dia. | 0.59 in |
| Taper Angle | 8 Degrees |
| Max. Body Dia. | 1/8 in |
| Compatible with Product Type | SK10 Slim Chucks |
| Number of Slots | 8 |
| Measurement System | Inch |
| Face Shape | Round |
| Min. Size | 1/8 in |
| Bore Shape | Round |
| Outside Diameter - Maximum | 0.591 in |
| Internal Thread Size | Not Applicable |
| Clamping Hole Length | 45/64 in |
| Collapse Range - Maximum | 1/8 in |
| Compatible Collet Chuck | SK Collet Chucks |
| External Thread Size | Not Applicable |
| Package Quantity | 1 |
