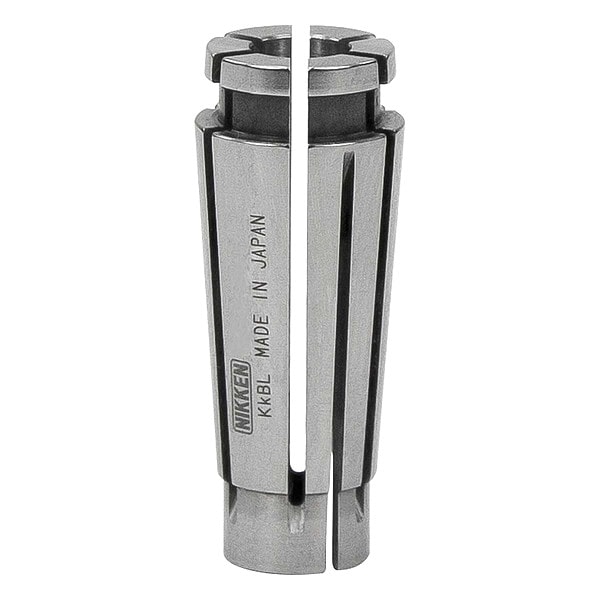

Slim Chuck Collet On Sz, 3/16in, SeriesSK6
| Item | Collet |
|---|---|
| Collet Series | SK6 |
| For Use With | Collet Chucks |
| Size | 3/16" |
| Pre-Balanced | No |
| Material | Steel |
| Range | On Size |
| Balanceable | No |
| Coolant Through | No |
| Overall Length | 31/32 in |
| Coolant Fed | Non-Coolant Through |
| Collet Type | Rigid |
| Min. Size | 3/16 in |
| Max. Body Dia. | 3/16 in |
| Max. Bore Dia. | 0.39 in |
| Number of Slots | 8 |
| Measurement System | Inch |
| Compatible with Product Type | SK6 Slim Chucks |
| Face Shape | Round |
| Taper Angle | 8 Degrees |
| Bore Shape | Round |
| Clamping Hole Length | 45/64 in |
| Outside Diameter - Maximum | 0.394 in |
| External Thread Size | Not Applicable |
| Collapse Range - Maximum | 0.188 in |
| Compatible Collet Chuck | SK Collet Chucks |
| Internal Thread Size | Not Applicable |
| Package Quantity | 1 |
