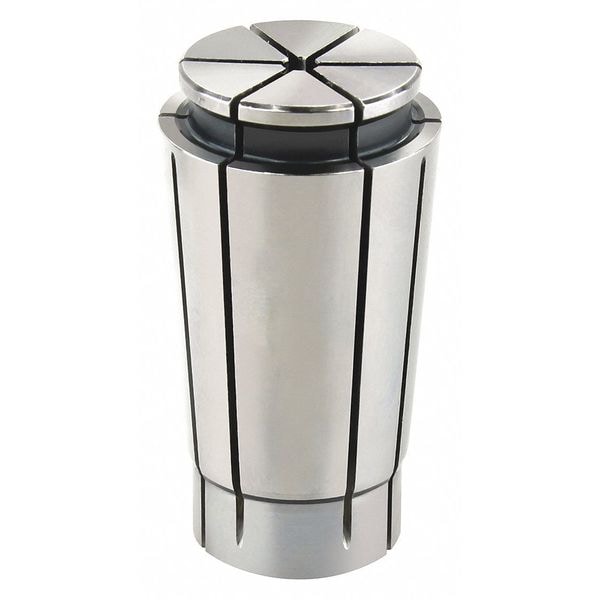

Slim Collet Chuck, 12.0 to 11.5mm, SK16
| Item | Collet |
|---|---|
| Collet Series | SK16 |
| For Use With | Collet Chucks |
| Size | 12.00mm |
| Coolant Through | No |
| Material | Steel |
| Balanceable | No |
| Pre-Balanced | No |
| Range | 12 to 11.5 mm |
| Overall Length | 1-49/64 in |
| Coolant Fed | Non-Coolant Through |
| Min. Size | 11.5 mm |
| Max. Body Dia. | 12 mm |
| Measurement System | Metric |
| Compatible with Product Type | SK16 Slim Chucks |
| Max. Bore Dia. | 24 mm |
| Taper Angle | 8 Degrees |
| Face Shape | Round |
| Collet Type | Standard |
| Number of Slots | 8 |
| Collapse Range - Minimum | 11.5 mm |
| External Thread Size | Not Applicable |
| Collapse Range - Maximum | 12 mm |
| Compatible Collet Chuck | SK Collet Chucks |
| Bore Shape | Round |
| Clamping Hole Length | 1-25/64 in |
| Internal Thread Size | Not Applicable |
| Outside Diameter - Maximum | 0.945 in |
| Package Quantity | 1 |
