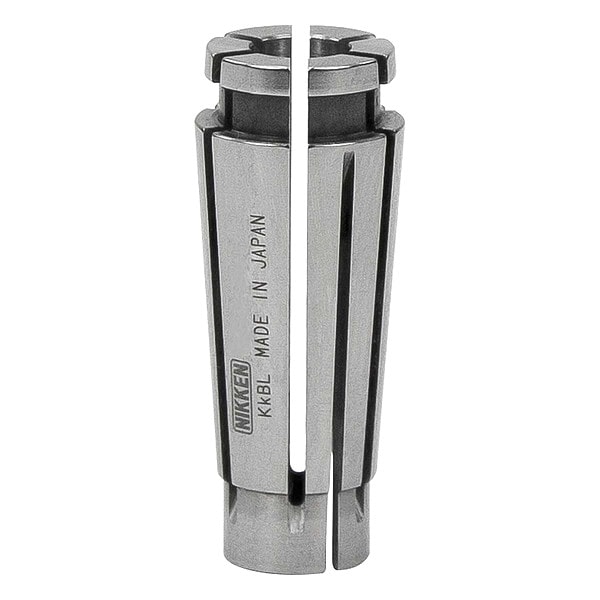

Slim Collet Chuck, 2.25 to 2.05mm
| Item | Collet |
|---|---|
| Collet Series | SK6 |
| For Use With | Collet Chucks |
| Size | 2.25mm |
| Pre-Balanced | No |
| Balanceable | No |
| Coolant Through | No |
| Range | 2.25 to 2.05 mm |
| Material | Steel |
| Overall Length | 31/32 in |
| Coolant Fed | Non-Coolant Through |
| Measurement System | Metric |
| Taper Angle | 8 Degrees |
| Compatible with Product Type | SK6 Slim Chucks |
| Face Shape | Round |
| Collet Type | Standard |
| Number of Slots | 8 |
| Max. Bore Dia. | 10 mm |
| Max. Body Dia. | 2.25 mm |
| Clamping Hole Length | 33/64 in |
| Outside Diameter - Maximum | 0.394 in |
| Internal Thread Size | Not Applicable |
| Collapse Range - Minimum | 2.05 mm |
| Bore Shape | Round |
| External Thread Size | Not Applicable |
| Collapse Range - Maximum | 2.25 mm |
| Compatible Collet Chuck | SK Collet Chucks |
| Package Quantity | 1 |
