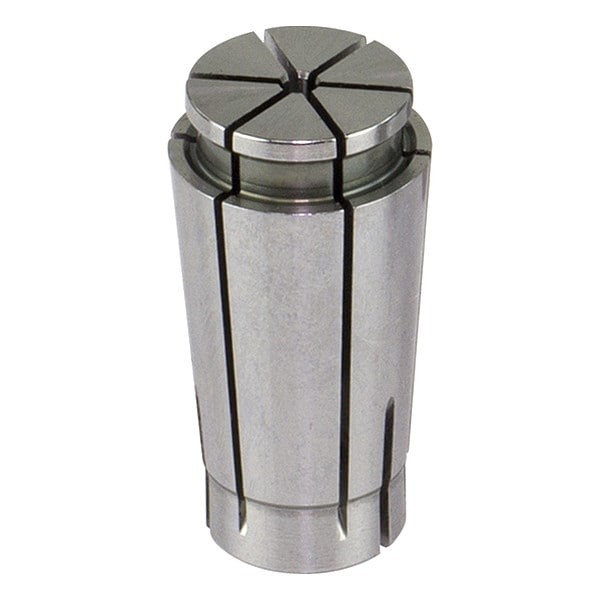

Slm Chck Collet On Sz Coolant, 5.0mm, SK10
| Item | Collet |
|---|---|
| Collet Series | SK10 |
| For Use With | Collet Chucks |
| Size | 5.00mm |
| Range | On Size |
| Coolant Through | Yes |
| Material | Steel |
| Balanceable | No |
| Pre-Balanced | No |
| Overall Length | 1-13/64 in |
| Coolant Fed | Coolant Through |
| Collet Type | Sealed |
| Taper Angle | 8 Degrees |
| Measurement System | Metric |
| Max. Body Dia. | 5 mm |
| Min. Size | 5 mm |
| Max. Bore Dia. | 15 mm |
| Number of Slots | 8 |
| Compatible with Product Type | SK10 Slim Chucks |
| Face Shape | Round |
| Bore Shape | Round |
| Internal Thread Size | Not Applicable |
| Operating Pressure - Maximum | 1,000 psi |
| Collapse Range - Maximum | 5 mm |
| Clamping Hole Length | 7/8 in |
| Compatible Collet Chuck | SK Collet Chucks |
| Outside Diameter - Maximum | 0.591 in |
| External Thread Size | Not Applicable |
| Package Quantity | 1 |
