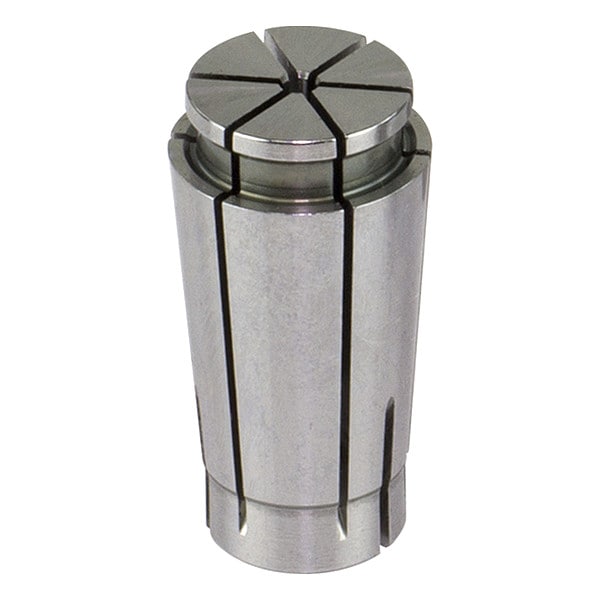

Slm Collet Chuck, 3.5 to 3.0mm, Serie SK10
| Item | Collet |
|---|---|
| Collet Series | SK10 |
| For Use With | Collet Chucks |
| Size | 3.50mm |
| Balanceable | No |
| Pre-Balanced | No |
| Coolant Through | No |
| Range | 3.5 to 3 mm |
| Material | Steel |
| Overall Length | 1-13/64 in |
| Coolant Fed | Non-Coolant Through |
| Face Shape | Round |
| Max. Bore Dia. | 15 mm |
| Taper Angle | 8 Degrees |
| Number of Slots | 8 |
| Compatible with Product Type | SK10 Slim Chucks |
| Collet Type | Standard |
| Measurement System | Metric |
| Max. Body Dia. | 3.5 mm |
| Outside Diameter - Maximum | 0.591 in |
| Internal Thread Size | Not Applicable |
| Bore Shape | Round |
| Collapse Range - Minimum | 3 mm |
| External Thread Size | Not Applicable |
| Compatible Collet Chuck | SK Collet Chucks |
| Collapse Range - Maximum | 3.5 mm |
| Package Quantity | 1 |
