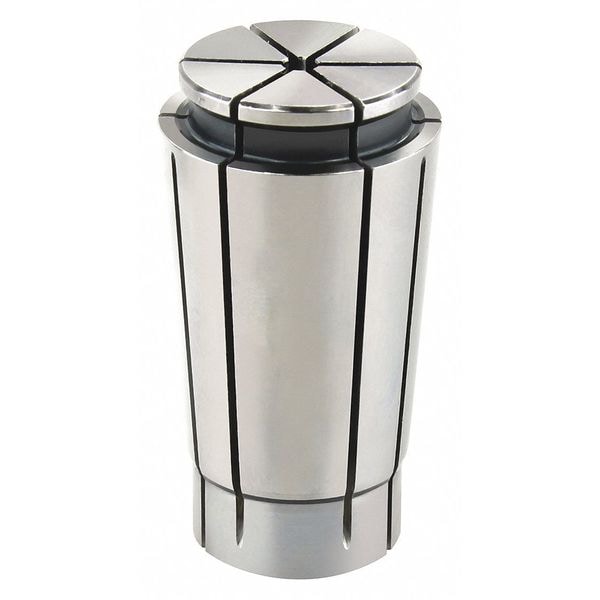

Slm Collet Chuck, 4.5 to 4.0mm, Serie SK16
| Item | Collet |
|---|---|
| Collet Series | SK16 |
| For Use With | Collet Chucks |
| Size | 4.50mm |
| Coolant Through | No |
| Material | Steel |
| Range | 4.5 to 4 mm |
| Overall Length | 1-49/64 in |
| Coolant Fed | Non-Coolant Through |
| Measurement System | Metric |
| Taper Angle | 8 Degrees |
| Max. Body Dia. | 4.5 mm |
| Max. Bore Dia. | 24 mm |
| Collet Type | Standard |
| Face Shape | Round |
| Number of Slots | 8 |
| Compatible with Product Type | SK16 Slim Chucks |
| Clamping Hole Length | 53/64 in |
| Outside Diameter - Maximum | 0.945 in |
| Collapse Range - Maximum | 4.5 mm |
| Collapse Range - Minimum | 4 mm |
| Internal Thread Size | Not Applicable |
| External Thread Size | Not Applicable |
| Compatible Collet Chuck | SK Collet Chucks |
| Bore Shape | Round |
| Package Quantity | 1 |
