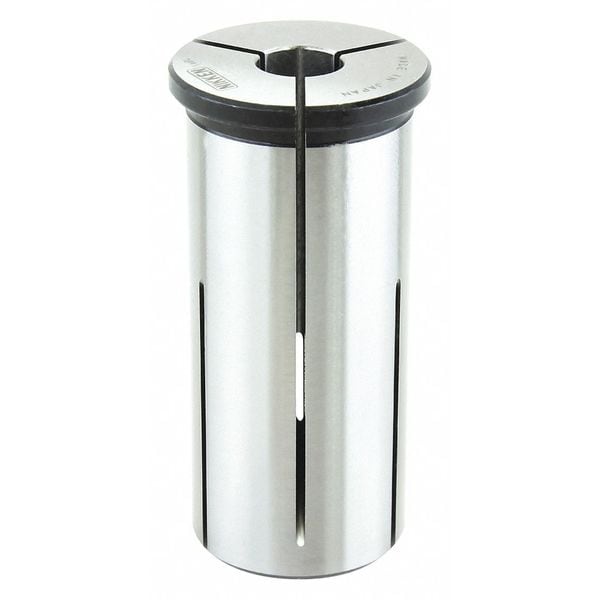

Straight Collet, KM1, 16mm
| Item | Collet |
|---|---|
| Collet Series | KM |
| Range | Exact Size |
| Size | 16.00mm |
| For Use With | Milling Chuck Holders |
| Coolant Through | No |
| Coolant Fed | Non-Coolant Through |
| Collet Type | Standard |
| Face Shape | Round |
| Max. Body Dia. | 16 mm |
| Measurement System | Metric |
| Min. Size | 16 mm |
| Max. Bore Dia. | 29 mm |
| Number of Slots | 3 |
| Overall Length | 2-21/64 in |
| Compatible Collet Chuck | Milling Chucks |
| Outside Diameter - Maximum | 1.14 in |
| Clamping Hole Length | 2-1/32 in |
| Bore Shape | Round |
| Collapse Range - Maximum | 16 mm |
| Internal Thread Size | Not Applicable |
| External Thread Size | Not Applicable |
| Package Quantity | 1 |
