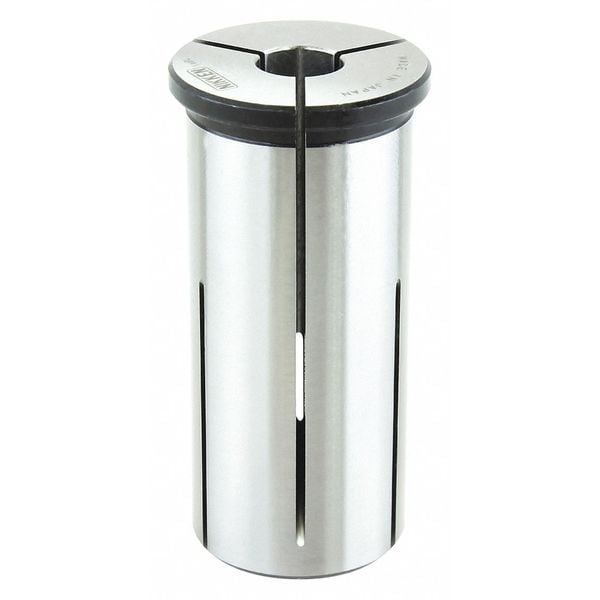

Straight Collet, KM2, 1-1/2in
| Item | Collet |
|---|---|
| Collet Series | KM |
| Range | Exact Size |
| Size | 1-1/2" |
| Coolant Through | No |
| For Use With | Milling Chuck Holders |
| Coolant Fed | Non-Coolant Through |
| Overall Length | 3-17/64 in |
| Min. Size | 1-1/2 in |
| Face Shape | Round |
| Collet Type | Standard |
| Measurement System | Inch |
| Number of Slots | 3 |
| Max. Bore Dia. | 2.28 in |
| Max. Body Dia. | 1-1/2 in |
| Internal Thread Size | Not Applicable |
| Outside Diameter - Maximum | 2.28 in |
| External Thread Size | Not Applicable |
| Bore Shape | Round |
| Compatible Collet Chuck | Milling Chucks |
| Collapse Range - Maximum | 1/2 in |
| Package Quantity | 1 |
