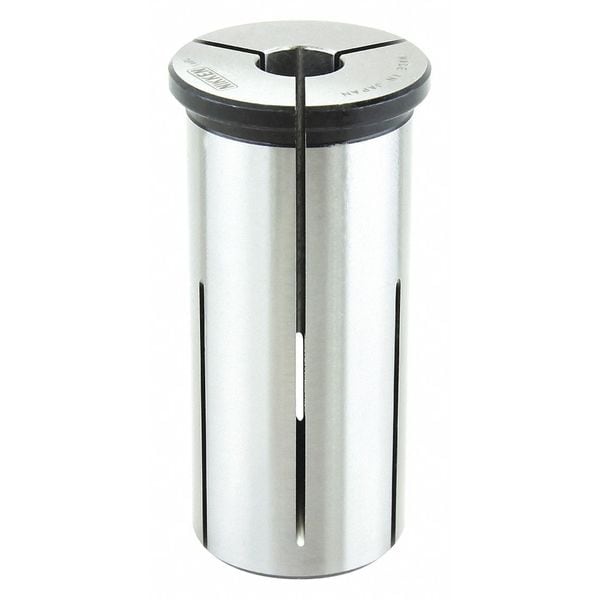

Straight Collet, KM3/4, 5/16in
| Item | Collet |
|---|---|
| Collet Series | KM |
| Range | Exact Size |
| Size | 5/16" |
| Coolant Through | No |
| For Use With | Milling Chuck Holders |
| Coolant Fed | Non-Coolant Through |
| Min. Size | 5/16 in |
| Max. Bore Dia. | 0.98 in |
| Max. Body Dia. | 5/16 in |
| Measurement System | Inch |
| Number of Slots | 3 |
| Face Shape | Round |
| Overall Length | 2-3/32 in |
| Collet Type | Standard |
| Internal Thread Size | Not Applicable |
| Compatible Collet Chuck | Milling Chucks |
| Clamping Hole Length | 1-7/16 in |
| Outside Diameter - Maximum | 0.98 in |
| External Thread Size | Not Applicable |
| Bore Shape | Round |
| Collapse Range - Maximum | 0.312 in |
| Package Quantity | 1 |
