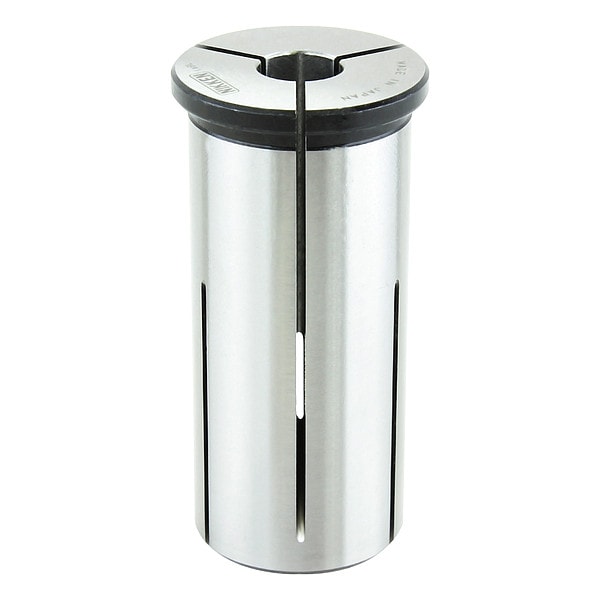

Straight Coolant Collet, CCK1-1/4, 12mm
| Item | Collet |
|---|---|
| Collet Series | KM |
| Range | Exact Size |
| Size | 12.00mm |
| Coolant Through | Yes |
| For Use With | Milling Chuck Holders |
| Coolant Fed | Coolant Through |
| Number of Slots | 3 |
| Overall Length | 2-17/32 in |
| Head Dia. | 37 mm |
| Max. Body Dia. | 12 mm |
| Face Shape | Round |
| Measurement System | Metric |
| Collet Type | Sealed |
| External Thread Size | Not Applicable |
| Compatible Collet Chuck | Milling Chucks |
| Bore Shape | Round |
| Outside Diameter - Maximum | 1.457 in |
| Collapse Range - Maximum | 12 mm |
| Internal Thread Size | Not Applicable |
| Package Quantity | 1 |
