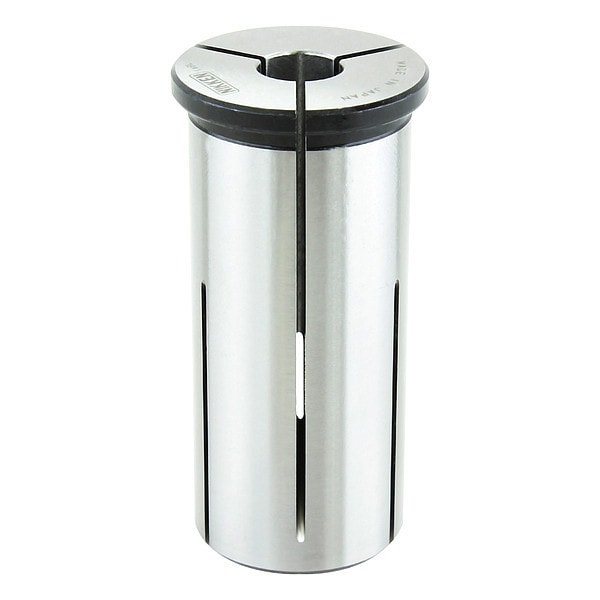

Straight Coolant Collet, CCK1-1/4, 5/8in
| Item | Collet |
|---|---|
| Collet Series | KM |
| Range | Exact Size |
| Size | 5/8" |
| Coolant Through | Yes |
| For Use With | Milling Chuck Holders |
| Coolant Fed | Coolant Through |
| Max. Body Dia. | 5/8 in |
| Collet Type | Sealed |
| Number of Slots | 3 |
| Head Dia. | 1.45 in |
| Measurement System | Inch |
| Overall Length | 2-35/64 in |
| Face Shape | Round |
| Bore Shape | Round |
| Internal Thread Size | Not Applicable |
| External Thread Size | Not Applicable |
| Compatible Collet Chuck | Milling Chucks |
| Outside Diameter - Maximum | 1.46 in |
| Collapse Range - Maximum | 5/8 in |
| Package Quantity | 1 |
