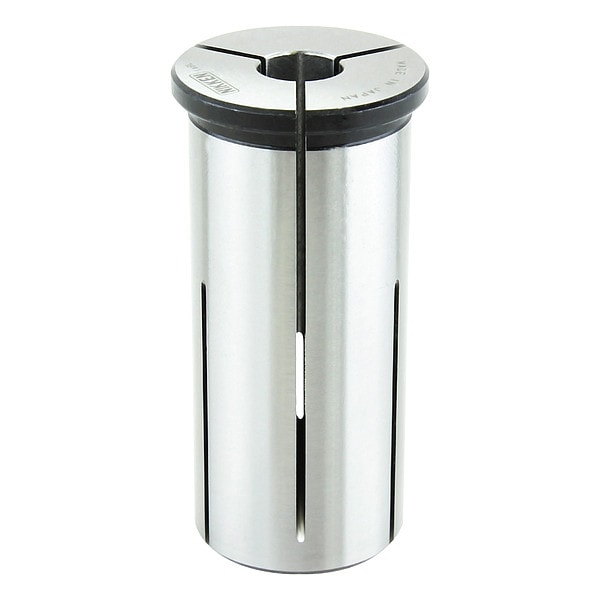

Straight Coolant Collet, CCK1, 7/16in
| Item | Collet |
|---|---|
| Collet Series | KM |
| Range | Exact Size |
| Size | 7/16" |
| For Use With | Milling Chuck Holders |
| Coolant Through | Yes |
| Coolant Fed | Coolant Through |
| Face Shape | Round |
| Head Dia. | 1.14 in |
| Max. Body Dia. | 7/16 in |
| Min. Size | 7/16 in |
| Measurement System | Inch |
| Overall Length | 2-5/16 in |
| Collet Type | Sealed |
| Number of Slots | 3 |
| Internal Thread Size | Not Applicable |
| Outside Diameter - Maximum | 1.14 in |
| Collapse Range - Maximum | 0.438 in |
| External Thread Size | Not Applicable |
| Bore Shape | Round |
| Compatible Collet Chuck | Milling Chucks |
| Package Quantity | 1 |
