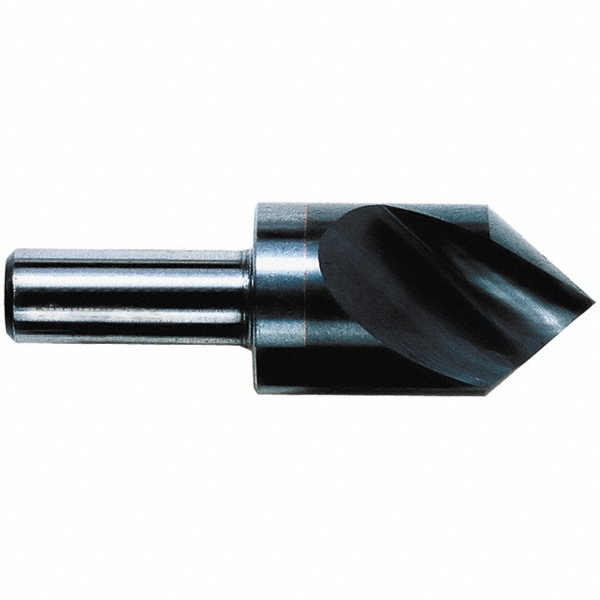

3/64" Min, 7/32" Max, 1/4" Shank Dia, 2" OAL, Altima Finish
| Head Diameter (Inch) | 1/4 |
|---|---|
| Head Diameter (Decimal Inch) | 0.2500 |
| Number Of Flutes | 1 |
| Included Angle | 90.00 |
| Countersink Material | Solid Carbide |
| Countersink Finish/Coating | Altima |
| Minimum Cutting Diameter (Inch) | 3/64 |
| Maximum Cutting Diameter (Inch) | 7/32 |
| Shank Diameter (Inch) | 1/4 |
| Overall Length (Inch) | 2 |
| Shank Type | Straight-Cylindrical |
| End Type | Single |
| Shank Material | Solid Carbide |
| Material Application | Magnesium Alloy; Monel; Alloy Steel; Aluminum; Stainless Steel; Brass; Cast Iron; Mild Steel; Plastic; Magnesium; High-Nickel Steel; High-Tensile Steel |
| Centerline Angle | 45 |
| Cutting Direction | Right Hand |
| Overall Length (Decimal Inch) | 2.0000 |
| Tool Application | Chamfering; Countersinking; Deburring |
| Countersink Head Only | No |
| UNSPSC Code | 27112812 |
| Additional Information | Modified Standard; Non-Returnable & Non-Cancelable |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 58225038 |
