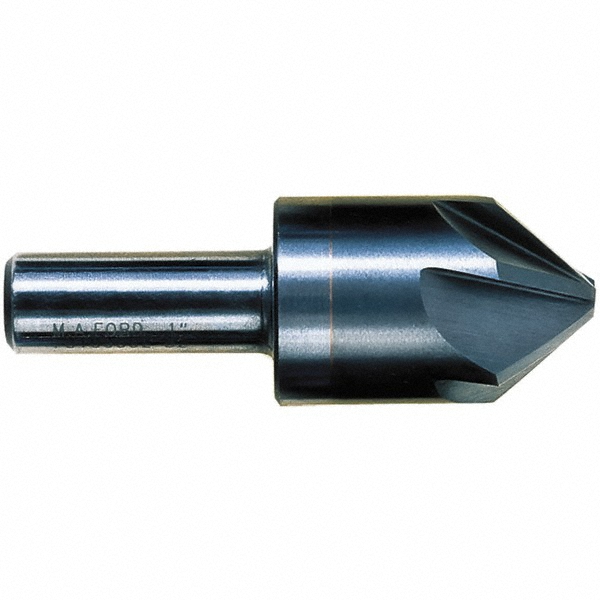

3/32" Min, 21/64" Max, 1/4" Shank Dia, 2" OAL, TiCN Finish
| Head Diameter (Inch) | 3/8 |
|---|---|
| Head Diameter (Decimal Inch) | 0.3750 |
| Number Of Flutes | 6 |
| Included Angle | 120.00 |
| Countersink Material | Solid Carbide |
| Countersink Finish/Coating | TiCN |
| Minimum Cutting Diameter (Inch) | 3/32 |
| Maximum Cutting Diameter (Inch) | 21/64 |
| Shank Diameter (Inch) | 1/4 |
| Overall Length (Inch) | 2 |
| Shank Type | Straight-Cylindrical |
| End Type | Single |
| Shank Material | High Speed Steel |
| Material Application | Magnesium Alloy; Monel; Alloy Steel; Aluminum; Stainless Steel; Brass; Cast Iron; Mild Steel; Plastic; Magnesium; High-Nickel Steel; High-Tensile Steel |
| Centerline Angle | 60 |
| Cutting Direction | Right Hand |
| Overall Length (Decimal Inch) | 2.0000 |
| Tool Application | Chamfering; Countersinking; Deburring |
| Countersink Head Only | No |
| UNSPSC Code | 27112812 |
| Additional Information | Modified Standard; Non-Returnable & Non-Cancelable |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 58224767 |
