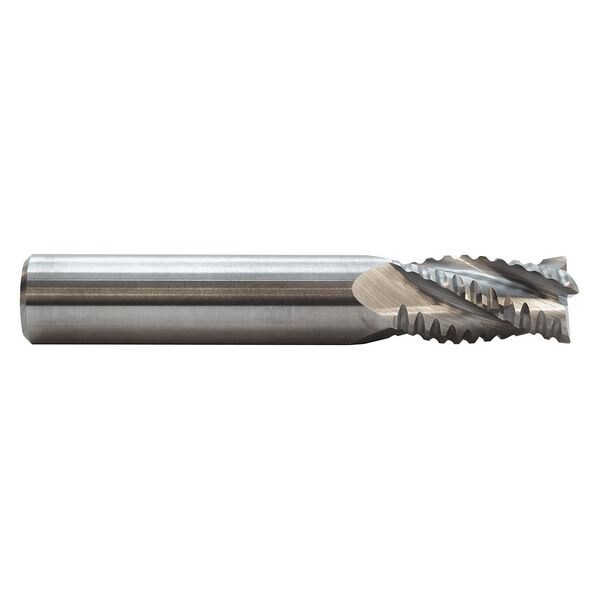

End Mill, 3/16" Dia, 5/8" Cut, Carbide
| Dimension Type | Fractional Inch |
|---|---|
| Milling Diameter | 3/16 in |
| End Mill Material | Carbide |
| Number of Flutes | 4 |
| Length of Cut | 5/8 in |
| Single End/Double End | Single End |
| End Mill Cutting Type | Center Cutting |
| Grade | General Purpose |
| Shank Dia. | 3/16 in |
| Overall Length | 2 in |
| Shank Type | Straight |
| Cutting Direction | Right Hand |
| Hardened (H) Compatibility | Yes |
| Stainless (M) Compatibility | Yes |
| Helix Angle | 30 deg |
| Cast Iron (K) Compatibility | Yes |
| Milling Dia. | 3/16 in |
| List Number | 114 |
| Finish | Bright |
| Steel (P) Compatibility | Yes |
| End Mill Style | Square |
| End Mill Application | Roughing |
| Non Ferrous (N) Compatibility | No |
| Super Alloy (S) Compatibility | Yes |
| Item | Square End Mill |
| Material Grade - Machining | General Purpose |
| Shank Type - Machining | Straight |
| Measurement System | Fractional Inch |
| Finish - Machining | Bright |
| Package Quantity | 1 |
