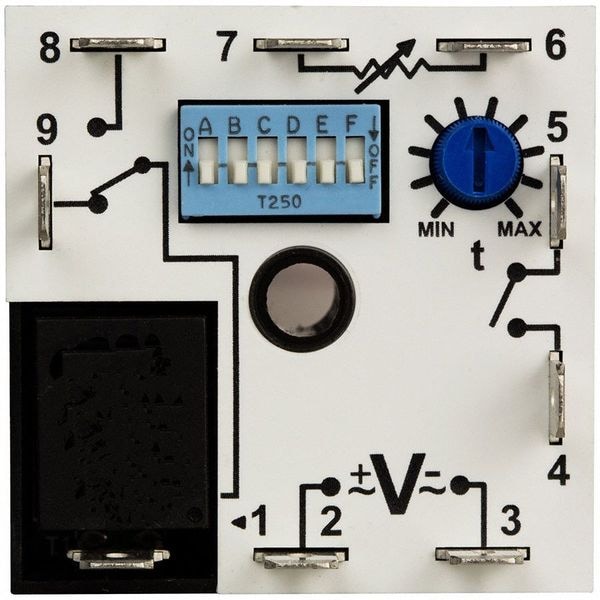

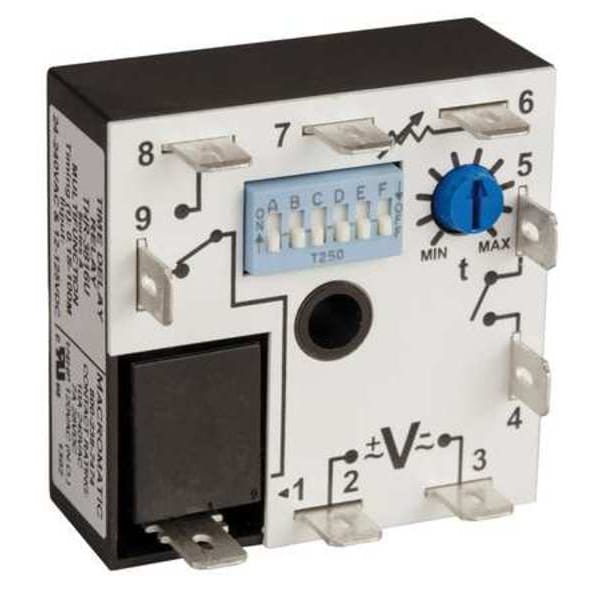

Relé de Tiempo Encapsulado, 10A, Relé, 0.1 seg.
| Item - Relay | Multi-Function Timing Relay |
|---|---|
| Function - Timing Relay | Flasher Off, Flasher On, One Shot Falling Edge, Watchdog |
| Input or Control Voltage | 12 to 125V DC, 24 to 240V AC |
| AC Contact Rating - Relay | 10A @ 240V |
| DC Contact Rating - Relay | 7 A @ 28 V |
| Number of Pins - Relay | 9 |
| Adjustment Method - Timer | Dip Switch |
| Mounting - Relay | Surface |
| Min. Time Setting - Timer | 0.1 sec |
| Contact Form - Relay | SPDT |
| Max. Time Setting - Timer | 1 hr 40 sec |
| Body Depth - Relay | 2 in |
| Body Width - Relay | 2 in |
| Pins | 9 |
| Standards | UL Listed |
| Body Height - Relay | 0.79 in |
| Input Voltage | 12 to 125V DC, 24 to 240V AC |
| Function | Repeat Cycle Equal On/Off Time, Watchdog, Single Shot Falling Edge |
| Operating Functions | 3,6,11 |
| Mounting | Surface |
| Status Indicator | None |
| Type of Output | Relay |
| Contact Form | SPDT |
| Timer Range | 0.10 sec. to 100 min. |
| Input or Control Voltage Range | 24 to 240VAC, 12 to 125VDC |
| Hz - Electrical | 50 Hz, 60 Hz |
| Hz | 50/60 |
| Output | Relay |
| Overall Height - Relay | 1.14 in |
| Adjustment Method | Dip Switch |
| Contact Amp Rating (Resistive) | 10 A |
| Item | Multi-Function Encapsulated Timing Relay |
| Contact Material | Silver Nickel |
| Electrical Connection | Screw Terminal |
| Sealing | Enclosed |
| Adjustment Interface | Analog |
| Body Depth | 0.79 in |
| Number of Delay Functions | 4 |
| Overall Depth | 1.14 in |
| Operating Time Accuracy | +0% -50% (Minimum Setting (Adjustable)), +5% -0% (Maximum Setting (Adjustable)) |
| Maximum Time Setting | 100 min |
| Contact Rating (AC) | 24 A @ 240 V |
| Contact Rating (DC) | 12 A @ 125 V |
| Electrical Operating Durability | 100,000 |
| Mechanical Operating Durability | 10,000,000 |
| Frequency | 50/60 Hz |
| Coil Voltage | 12 to 125V DC, 24 to 240V AC |
| Minimum Operating Temperature | -18 deg F |
| Current Rating | 24 A |
| Reset Method | Time-Limit Reset |
| Minimum Time Setting | 0.1 sec |
| Base Shape | Square |
| Maximum Operating Temperature | 149 deg F |
| Power Consumption | 2 VA |
| Body Width | 2 in |
| Number of Pins | 9 |
| Delay Function | Flasher OFF 1st, Flasher On 1s, Single Shot Falling Edge, Watchdog |
| Mounting Style | Surface |
| Body Height | 2 in |
| Package Quantity | 1 |
