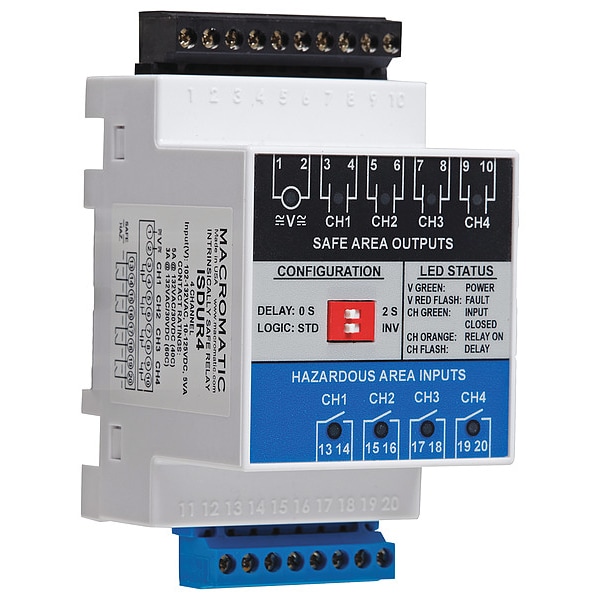

Relé de propósito general, 240VAC Coil Volts, cuadrado, 0 pines, (4) SPST-NO
| Item | General Purpose Relay |
|---|---|
| Item - Relay | Intrinsically Safe Barrier Relay |
| Coil Volts | 240VAC |
| AC Contact Rating - Relay | 5A @ 120V |
| DC Contact Rating - Relay | 5 A @ 30 V |
| Base Type - Plug In Relay | Square |
| Number of Pins - Relay | 0 |
| Contact Form - Relay | (4) SPST-NO |
| Mounting - Relay | DIN Rail, Surface |
| Power Consumption - Relay | 5 VA |
| HP @ 120V | Not Rated |
| Contact Material | Silver Nickel |
| Body Height - Relay | 2.6 in |
| Body Width - Relay | 2.36 in |
| Body Depth - Relay | 4.3 in |
| Overall Height - Relay | 2.6 in |
| Features | Isolated Input Terminals, Pilot Duty D300, 4-Channel |
| Standards | CE Certified, cULus Listed, UL 913 |
| Safety Rating | Class 1, Div 1 |
| Electrical Connection | Screw Terminal |
| HP @ 240V | Not Rated |
| Contact Form | SPST-NO |
| Number of Pins | 0 |
| Push To Test | No |
| Status Indicator | LED Indicator |
| Use With - Relay | Hazardous Location Switches and Sensors |
| Delay Time - Relay | Fixed 2.00 sec |
| Input Power Consumption (Burden) | 5 VA |
| Electrical Connection - Relay | Screw Terminal |
| Input or Control Voltage | 10 to 125 V DC, 102 to 132 V AC |
| Response Time - Relay | 50 msec |
| Number of Inputs | 4 |
| Delay Time | 2 sec |
| IP Rating | IP20 |
| Body Depth | 4.36 in |
| Overall Depth | 2.6 in |
| Frequency | 50/60 Hz |
| For Use With | Hazardous Location Switches and Sensors |
| Mounting Style | DIN Rail & Panel |
| Coil Resistance | Not Applicable |
| Output Switch Configuration | NO |
| Body Width | 2.36 in |
| Electrical Operating Durability | 50,000 |
| Response Time | 50 msec |
| Mechanical Operating Durability | 5,000,000 |
| Delay Type | Adjustable |
| Number of Input Channels | 4 |
| Contact Rating (AC) | 3 A @ 125V, 5 A @ 125V |
| Input Voltage | 10 to 125V AC, 102 to 132V DC |
| Contact Rating (DC) | 3 A @ 30 V, 5 A @ 30 V |
| Power Consumption | 5 VA |
| Minimum Operating Temperature | -18 deg F |
| Body Height | 2.6 in |
| Maximum Operating Temperature | 140 deg F |
| Package Quantity | 1 |
