Retardo de tiempo Rlay, 240VAC, 10A, DPDT, 0.05 seg.
| Item - Relay | Single Function Timing Relay |
|---|---|
| Function - Timing Relay | Power Off Delay (True Off Delay) |
| Coil Volts | 240V AC |
| AC Contact Rating - Relay | 10A @ 240V |
| DC Contact Rating - Relay | 8 A @ 28 V |
| Base Type - Plug In Relay | Octal |
| Number of Pins - Relay | 8 |
| Mounting - Relay | Plug In |
| Adjustment Method - Timer | Potentiometer |
| Min. Time Setting - Timer | 0.05 sec |
| Contact Form - Relay | DPDT |
| Max. Time Setting - Timer | 30 min |
| Power Consumption - Relay | 2 VA |
| Max. Time Setting | 30 min |
| Item | Single Function Time Delay Relay |
| Function | Power Off Delay (True Off Delay) |
| Base Type | Octal |
| Socket | 1EGP3, 1EGP5, 5X852 |
| Min. Time Setting | 0.05 sec |
| Overall Height - Relay | 3.1 in |
| Operating Functions | 10 |
| Contact Form | DPDT |
| Hz - Electrical | 50 Hz, 60 Hz |
| Mounting | plug In |
| Pins | 8 |
| Standards | CE Certified, UL Listed |
| Contact Material | Silver Nickel |
| Hz | 50/60 |
| Coil Rating | 2 VA |
| Body Height - Relay | 2.9 in |
| Body Depth - Relay | 1.7 in |
| Body Width - Relay | 2.4 in |
| Adjustment Method | Switch |
| Contact Amp Rating (Resistive) | 10 A |
| Status Indicator | None |
| Electrical Connection | Socket |
| Socket Code | A |
| Output | 10A DPDT |
| Input Voltage | 240V AC |
| Number of Pins | 8 |
| Maximum Time Setting | 30 min |
| Overall Depth | 3-1/2 in |
| Body Width | 2.3 in |
| Flat Pin Width | Not Applicable |
| Maximum Operating Temperature | 149 deg F |
| Body Height | 1.7 in |
| Current Rating | 10 A |
| Delay Function | Off Delay |
| Contact Rating (AC) | 10 A @ 240 V |
| Minimum Operating Temperature | -18 deg F |
| Mechanical Operating Durability | 2,000,000 |
| Mounting Style | Plug-In |
| Reset Method | Time-Limit Reset |
| Adjustment Interface | Analog |
| Base Shape | Octal |
| IP Rating | IP20 |
| Power Consumption | 2 VA |
| Contact Rating (DC) | 8 A @ 28 V |
| Number of Delay Functions | 1 |
| Body Depth | 2.9 in |
| Frequency | 50/60 Hz |
| Minimum Time Setting | 0.05 sec |
| Coil Voltage | 240V AC |
| Sealing | Enclosed |
| Temperature | -28°to 65°C |
| Load (Burden) | 2 VA |
| Enclosure Style | Plug-in case utilizing industry-standard 8 pin octal sockets |
| Reset Time | 0.1 sec |

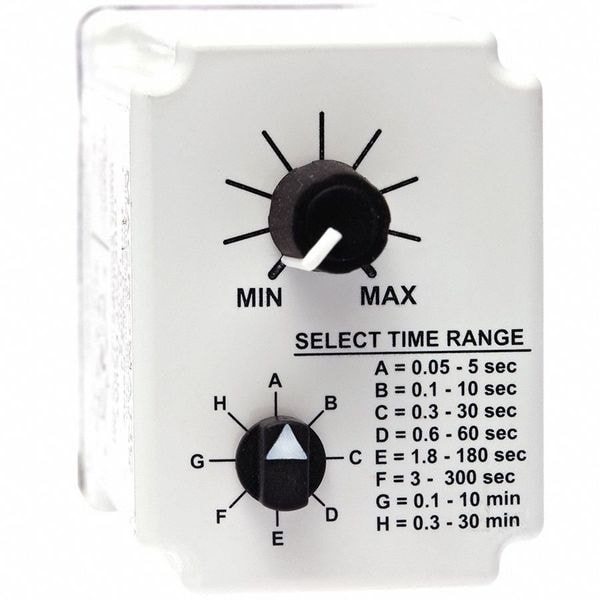

| Timing Range | Multi-range (8): 0.05 seconds - 30 minutes |
| Control Voltage | 240V AC |
| Timing Adjustment | Analog |
| Repeat Accuracy (Constant Voltage & Temperature) | +1% or 50ms, whichever is greater |
| Life | Mechanical: 2,000,000 operations; Full Load: 100,000 operations |
| Output Contacts | 10A @ 240V AC, 8A @ 28V DC, 1/2HP @ 240V AC, 1/4HP @ 120V AC, B300 & R300 |
| Voltage Tolerance | AC Operation: +10/-15% of nominal at 50/60 Hz.; DC Operation: +10/-15% of nominal. |
| Configuration / Contact Rating | DPDT. 10A @ 240V AC, 8A @28V DC, 1/2 HP @ 240V AC, 1/4HP@ 120V AC, B300 & R300 |
| Mount | Plug-in |
| Setting Accuracy | Maximum Setting (Adjustable): +5%, -0%; Minimum Setting (Adjustable): +0%, -50%. |
| Package Quantity | 1 |
