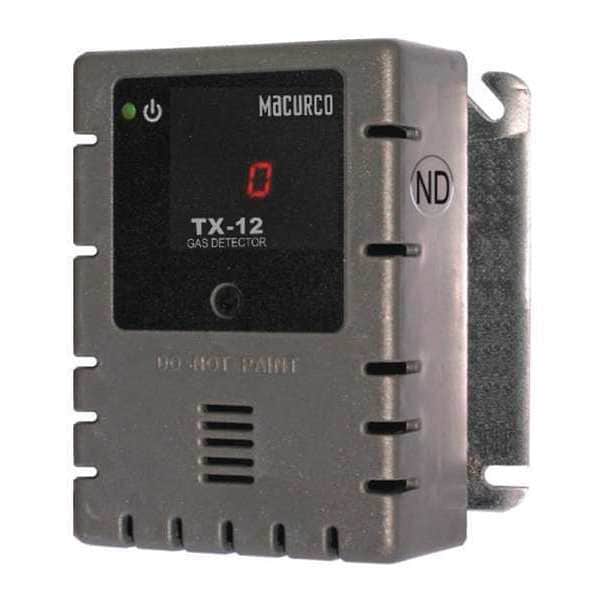

Fixed Gas Detector, NO2, 4-1/2in.Hx4in.W
| Item | Fixed Gas Detector |
|---|---|
| For Use With | Macurco Control Panel |
| Gas Detected | Nitrogen Dioxide |
| Chemical Formula | NO2 |
| Sensor Range | 0 to 20 ppm |
| Operating Temp. Range | 0 to 125 deg F |
| Resolution | 1 ppm |
| Features | 0.5 A N.O. or N.C. Alarm Relay, 5 A SPDT Fan Control Relay, Selectable Fan and Alarm Relay Actuation Settings |
| Gas Type | NO2 |
| Includes | Manual |
| Width | 4 in |
| Height | 4-1/2 in |
| Display | LED |
| Depth | 2-1/8 in |
| Number of Channels | 2 |
| Power Required | 100 to 240V AC (50 to 60 Hz) |
| Connection | Plugs, Terminals |
| Alarm Type | Visual, Audible |
| Status Indicator | LED |
| Standards | cETLus Certified |
| Color | Gray |
| IP Rating | Not Rated |
| Product Type | Stand-Alone Detector & Controller |
| Operating Frequency | 50 to 60 Hz |
| Output Channels | 2 |
| Display Type | Digital |
| Operating Humidity - Minimum | 10 % |
| Series | Commercial Series |
| Number of Gases Detected | 1 |
| Manufacturer Warranty Length | 2 yr |
| Output Current | 4 to 20 mA |
| Overall Depth | 4 in |
| Number of Relays | 2 |
| Alarm Setting Adjustment | Adjustable Alarm Setting |
| Overall Width | 2.12 in |
| Operating Temperature - Minimum | -4 deg F |
| Visual Alert Type | LED |
| Sensor Life | 2 yr |
| For Environment | Hazardous Locations |
| Overall Height | 4-1/2 in |
| Alert Type | Internal Buzzer |
| Housing Color | Gray |
| Ties Into | Building Automation Panels, Fire Alarm Panels |
| Sub-Brand | Macurco |
| Number of Digits | 3 |
| NEMA Enclosure Rating | Not Rated |
| Measurement Range | Nitrogen Dioxide (0 to 20 ppm) |
| Operating Humidity - Maximum | 90 % |
| Coverage Area | 5,000 sq ft |
| Display Screen Type | LED |
| Operating Temperature - Maximum | 122 deg F |
| Power Source | Hardwired |
| Market | Commercial |
| Input Current | 1.0 A |
| Interchangeable Sensors | Yes |
| Mount Type | Bolts, Screws |
| Sensor Type | Electrochemical |
| Output Type | SPDT Relay |
| Operating Voltage | 100 to 240 V AC |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
