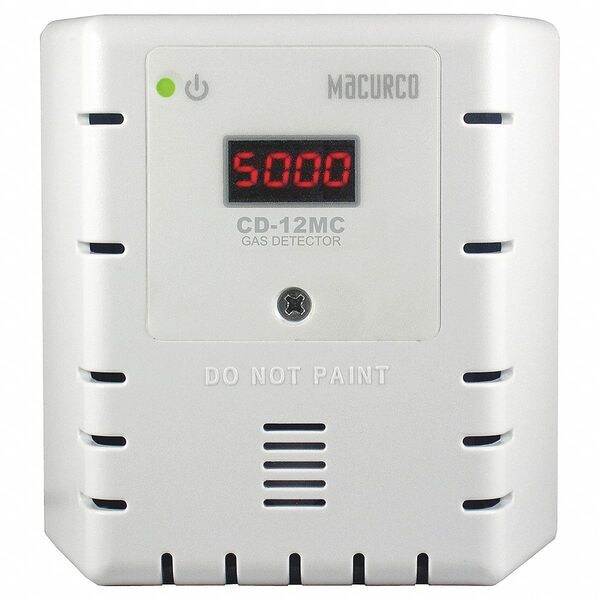

Gas Detector, Controller, Transducer
| Item | Fixed Gas Detector |
|---|---|
| For Use With | DVP-120 |
| Gas Detected | Carbon Dioxide |
| Chemical Formula | CO2 |
| Sensor Range | 0 to 5,000 ppm |
| Operating Temp. Range | 32 to 122 deg F |
| Resolution | 50 ppm |
| Features | Selectable Fan and Alarm Relay Actuation Settings |
| Gas Type | CO2 |
| Includes | Manual |
| Color | White |
| Status Indicator | LED |
| Display | LED |
| Height | 4-1/2 in |
| Connection | Plugs, Terminals |
| Width | 4 in |
| Alarm Type | Visual, Audible |
| Power Required | 100 to 240V AC |
| Number of Channels | 0 |
| Depth | 2-3/4 in |
| Control Type | 4 to 20mA |
| Standards | cETLus Certified |
| IP Rating | Not Rated |
| Product Type | Stand-Alone Detector & Controller |
| Sensor Life | 15 yr |
| Visual Alert Type | LED |
| Housing Color | Gray, White |
| Mount Type | Bolts, Screws |
| Input Current | 1.0 A |
| Interchangeable Sensors | No |
| Display Screen Type | LED |
| Market | Commercial |
| Alert Type | Internal Buzzer |
| Sub-Brand | Macurco |
| Sensor Type | Infrared |
| Manufacturer Warranty Length | 2 yr |
| Operating Frequency | 50 to 60 Hz |
| Alarm Volume Level | 85 dBA |
| NEMA Enclosure Rating | Not Rated |
| Overall Depth | 4 in |
| Ties Into | Building Automation Panels, Fire Alarm Panels |
| Measurement Range | Carbon Dioxide (0 to 5,000 ppm) |
| Operating Humidity - Minimum | 10 % |
| Overall Height | 4-1/2 in |
| Display Type | Digital |
| Operating Temperature - Minimum | 32 deg F |
| Operating Humidity - Maximum | 90 % |
| Operating Temperature - Maximum | 122 deg F |
| For Environment | Hazardous Locations |
| Number of Digits | 4 |
| Overall Width | 2.12 in |
| Output Current | 4 to 20 mA |
| Alarm Setting Adjustment | Adjustable Alarm Setting |
| Number of Gases Detected | 1 |
| Power Source | Hardwired |
| Input Channels | Not Applicable |
| Number of Relays | 2 |
| Series | Commercial Series |
| Output Type | SPDT Relay |
| Coverage Area | 900 sq ft |
| Operating Voltage | 100 to 240 V AC |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
