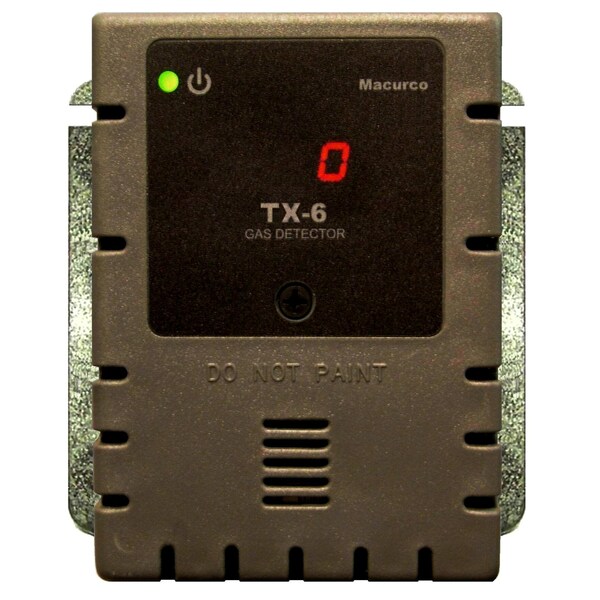

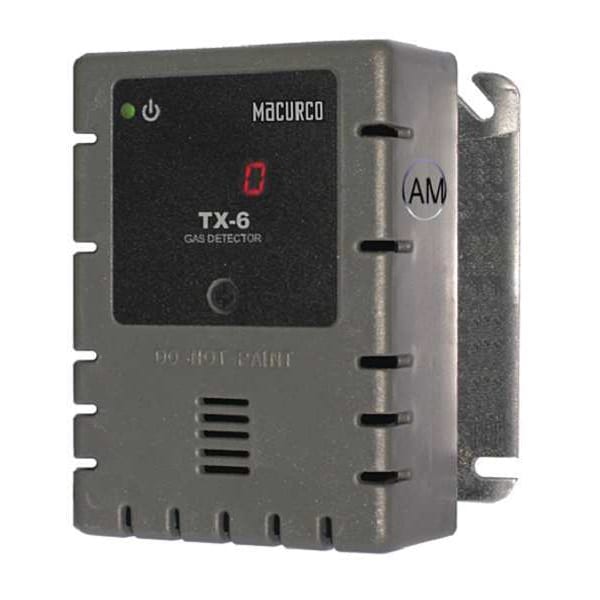

Gas Detector, NH3, 0 to 100 ppm
| Item | Fixed Gas Detector and Controller |
|---|---|
| For Use With | Macurco Control Panel |
| Color | Gray |
| Status Indicator | LED |
| Alarm Type | Audible, Visual |
| Number of Channels | 2 |
| Resolution | 1 ppm |
| Standards | cETLus Certified |
| Depth | 2-1/8 in |
| Includes | Manual |
| Sensor Range | 0 to 100 ppm |
| Power Required | 12 to 24 V AC, 12 to 32 V DC |
| Height | 4-1/2 in |
| Display | LED |
| Gas Type | NH3 |

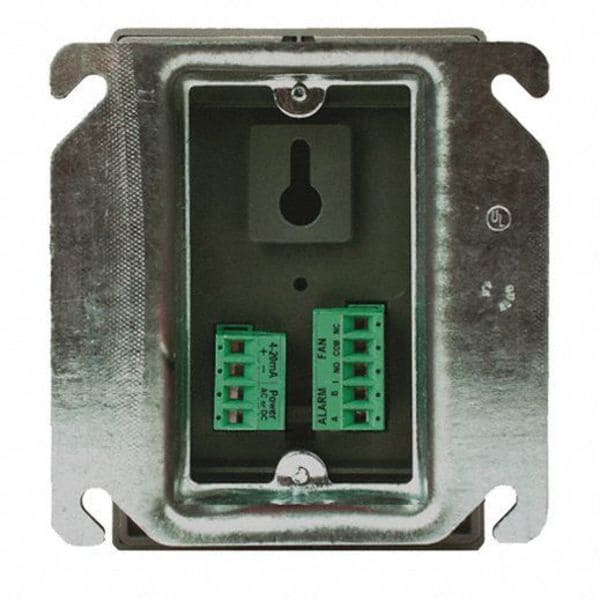

| Connection | Plugs/Terminals |
| Features | 0.5 A N.O. or N.C. Alarm Relay, 5 A SPDT Fan Control Relay, Selectable Fan and Alarm Relay Actuation Settings |
| Operating Temp. Range | 0 to 125 deg F |
| Width | 4 in |
| Interchangeable Sensors | Yes |
| Housing Color | Gray |
| Overall Height | 4-1/2 in |
| Overall Width | 2.12 in |
| Measurement Range | Ammonia (0 to 100 ppm) |
| Coverage Area | 900 sq ft |
| Operating Humidity - Maximum | 90% |
| Operating Temperature - Minimum | -4 deg F |
| Input Channels | 2 |
| Power Source | Hardwired |
| Output Current | 4 to 20 mA |
| Sub-Brand | Macurco |
| Output Type | SPDT Relay |
| Display Type | Digital |
| Series | Commercial Series |
| Overall Depth | 4 in |
| Visual Alert Type | LED |
| Alert Type | Internal Buzzer |
| Ties Into | Building Automation Panels, Fire Alarm Panels |
| Gas Detected | Ammonia |
| Chemical Formula | NH3 |
| Market | Commercial |
| Manufacturer Warranty Length | 2 yr |
| Number of Gases Detected | 1 |
| Number of Relays | 2 |
| Sensor Life | 2 yr |
| Mount Type | Screws, Bolts |
| For Environment | Hazardous Locations |
| Number of Digits | 3 |
| IP Rating | Not Rated |
| NEMA Enclosure Rating | Not Rated |
| Sensor Type | Electrochemical |
| Operating Humidity - Minimum | 10 % |
| Alarm Setting Adjustment | Adjustable Alarm Setting |
| Display Screen Type | LED |
| Input Current | 23 mA @ 24V DC (Standby), 50 mA @ 24V DC (Fan Relay), 75 mA @ 24V DC (Alarm) |
| Operating Temperature - Maximum | 122 deg F |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
