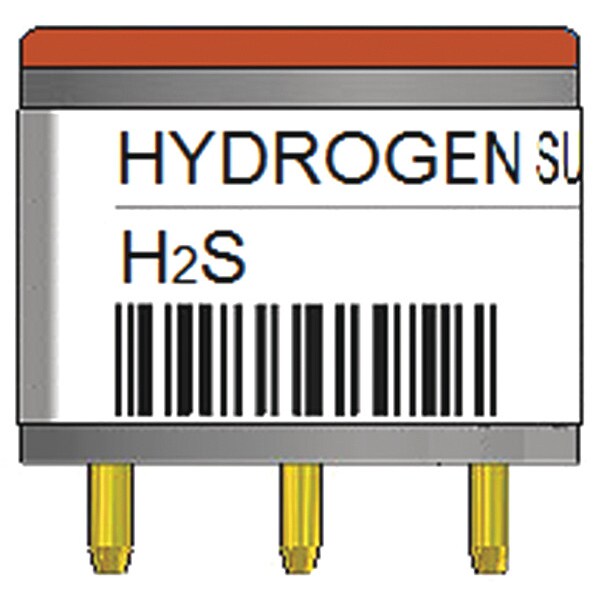

Hydrogen Sulfide Replacement Sensor for TX-6-HS and TX-12-HS
| Item | Gas Detector Sensor |
|---|---|
| Detects | Hydrogen Sulfide |
| Sensor Range | 0 to 50 ppm |
| Resolution | 1 ppm |
| Temp. Range | 0 to 125 deg F |
| For Use With | Mfr. No. TX-6-HS, TX-12-HS |
| Chemical Formula | H2S |
| Compatible Detector Model/Series | TX-12-HS, TX-6-HS |
| For Detector Type | Fixed |
| Sensor Life | 2 yr |
| Sensor Type | Electrochemical |
| T90 Response Time | 30 sec |
| Series | Commercial Series |
| Operating Temperature - Minimum | 0 deg F |
| Features | 4-20 mA Output to Control VFDs and Send to BMS, 5 A SPDT Fan Relay, 0.5A Alarm Relay to Control Fans, Valves, Louvers, Horn and Strobes, Install to A 4x4 Electrical Boxes Via Mud Plate, End of Life Notification, LED Display to Show Gas Concentrations, User Selectable Settings Via Two-Button Interface |
| Sub-Brand | Macurco |
| Gas Detected | Hydrogen Sulfide |
| Measurement Range | 0 to 50 ppm |
| Operating Temperature - Maximum | 125 deg F |
| Compatible Detector Manufacturer Part Number | TX-12-HS, TX-6-HS |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
