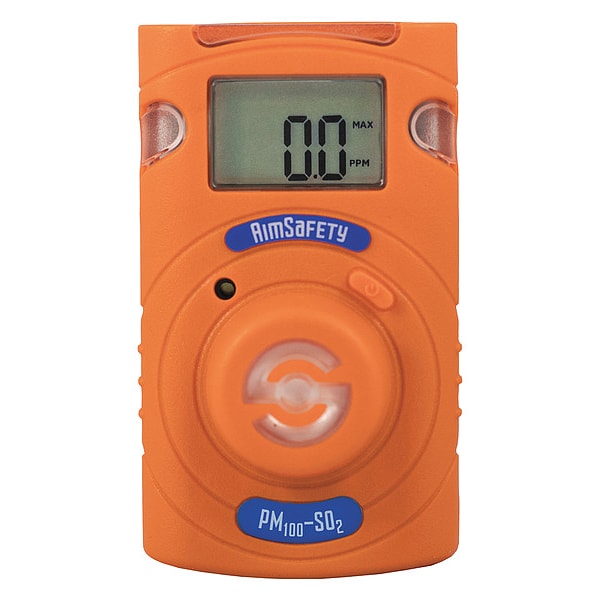

Portable Sulfur Dioxide Monitor
| Item | Single-Gas Detector |
|---|---|
| Gas Type | CO, H2S, O2, SO2, NH3, NO2 |
| Operating Temp. Range | -40 Degrees F to 122 Degrees F |
| Detects | Dioxide |
| Standards | ATEX II 1G Ex ia IIC T4 Ga, Class 1 Division 1 and 2, Groups A,B,C & D, IECEX Ex ia IIC T4, INMETRO, UL-913 & CSA-C22.2 No.157 |
| Features | Event Logging, Single Button Operation, Visible Calibration Status |
| Height | 1.56 in |
| Width | 1-59/64 in |
| Sensor Life | 30 days |
| Resolution | 0.1 ppm |
| Sensor Range | 0 to 50 ppm |
| Display | LCD |
| Power Source | Battery |
| Alarm Type | Vibration |
| IP Rating | IP67 |
| Depth | 3-11/32 in |
| Battery Type | Lithium |
| Housing Color | Orange |
| Alarm Volume Level | 90 dB @ 4 in |
| Communication Protocol | PC-Compatible Interface, USB |
| Series | PM100 |
| Battery Size | 3.6V |
| Operating Humidity - Minimum | 5 % |
| Operating Humidity - Maximum | 95 % |
| Maintainability | Maintenance-Free |
| Hazardous Location Specification | Class I Divisions 1, 2 Groups A, B, C, D |
| Temperature Code | T4 |
| For Environment | Hazardous Environments |
| Replaceable Battery | No |
| Data Logger | Yes |
| Manufacturer Warranty Length | 2 yr |
| Resistance Properties | Water Resistant |
| Includes Probe | No |
| Number of Gases Detected | 1 |
| Country of Origin (subject to change) | Korea, Republic of |
| Package Quantity | 1 |
