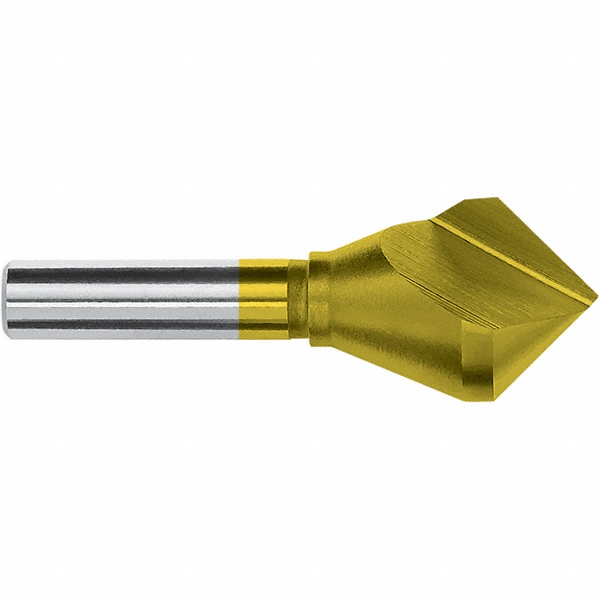

3/64" Min, 15/64" Max, 15/64" Shank Dia, 1-5/8" OAL, TiN Finish
| Head Diameter (mm) | 6.0000 |
|---|---|
| Head Diameter (Decimal Inch) | 0.2360 |
| Number Of Flutes | 1 |
| Included Angle | 82.00 |
| Countersink Material | Cobalt Steel |
| Countersink Finish/Coating | TiN |
| Minimum Cutting Diameter (Inch) | 3/64 |
| Maximum Cutting Diameter (Decimal Inch) | 0.2360 |
| Maximum Cutting Diameter (Inch) | 15/64 |
| Shank Diameter (Inch) | 15/64 |
| Shank Diameter (mm) | 6.0000 |
| Overall Length (Inch) | 1-5/8 |
| Shank Type | Straight-Cylindrical |
| End Type | Single |
| Centerline Angle | 41 |
| Cutting Direction | Right Hand |
| Overall Length (Decimal Inch) | 1.6250 |
| Tool Application | Chamfering; Countersinking |
| Countersink Head Only | No |
| UNSPSC Code | 27112812 |
| Country of Origin | France |
| MSC Number | MSC# 95431581 |
