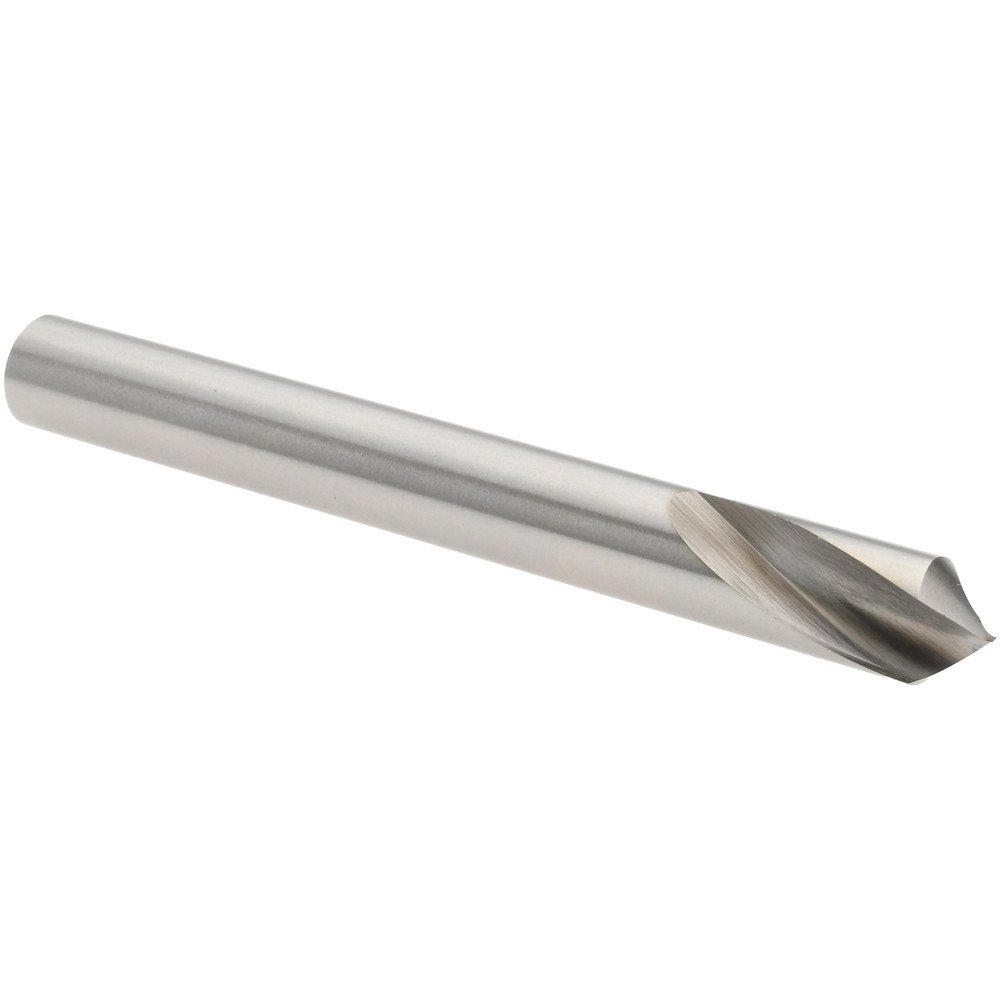

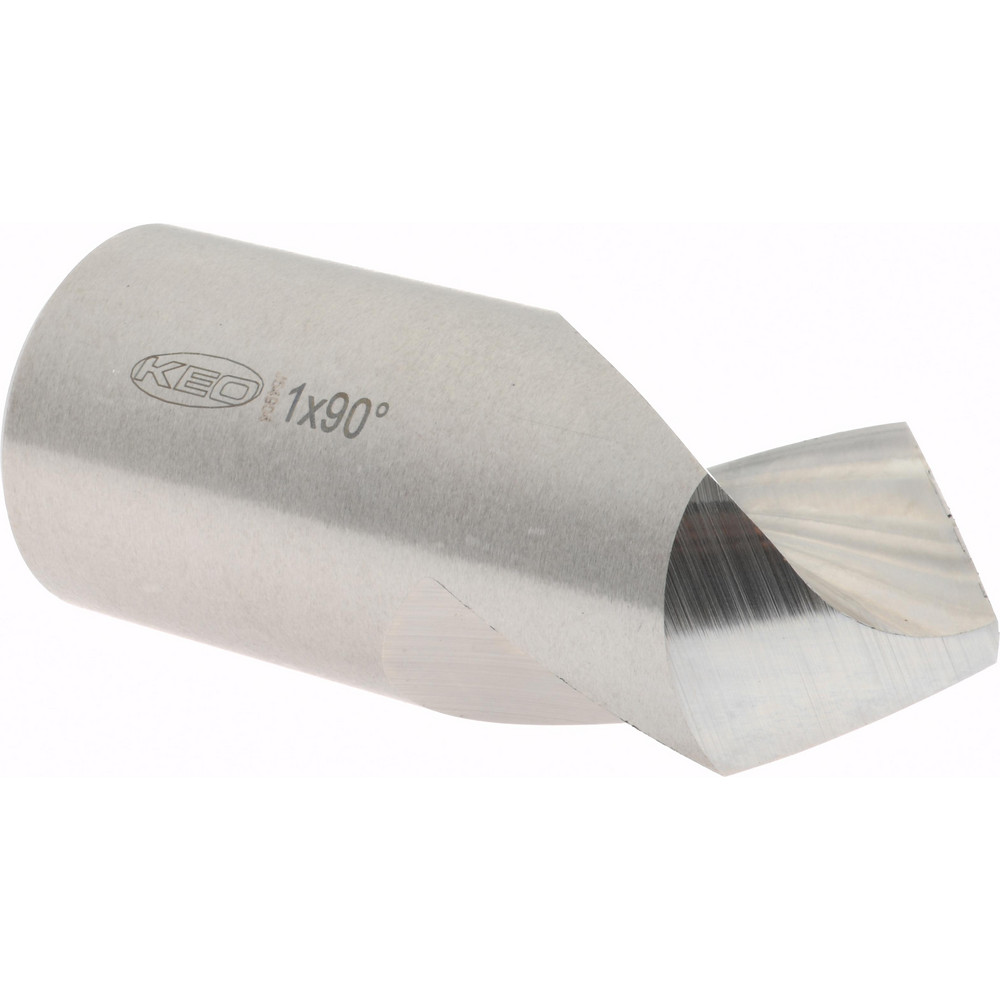

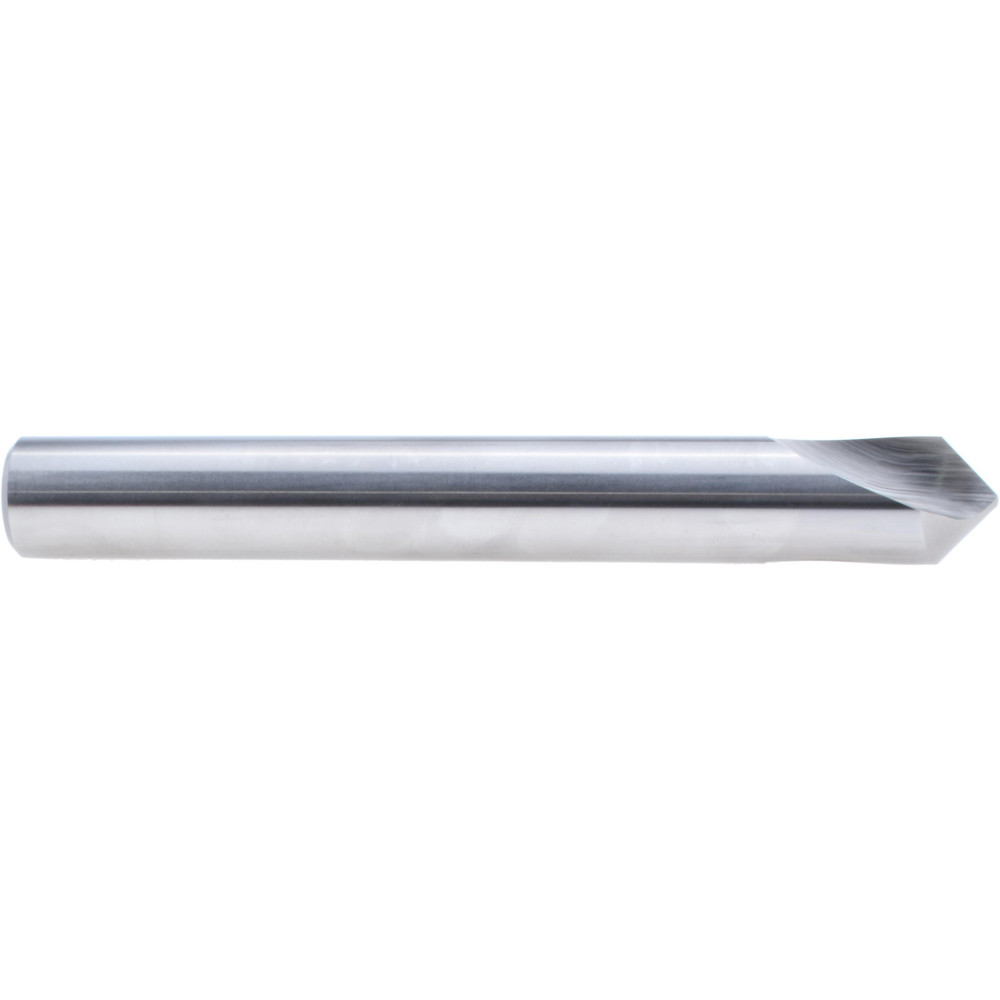

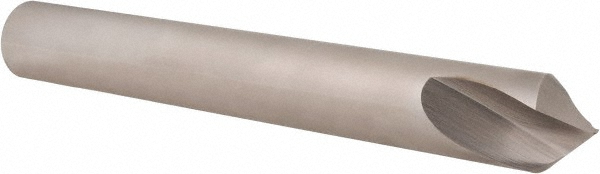

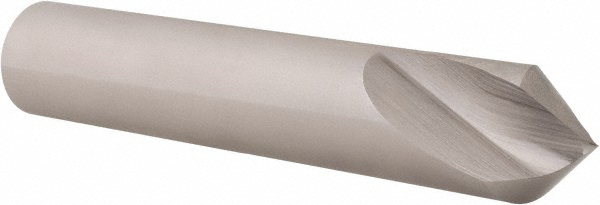

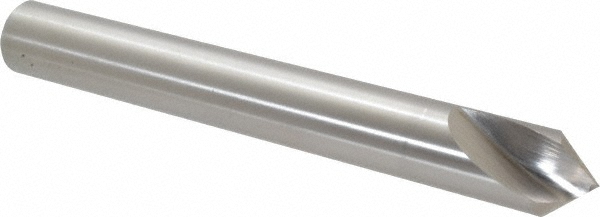

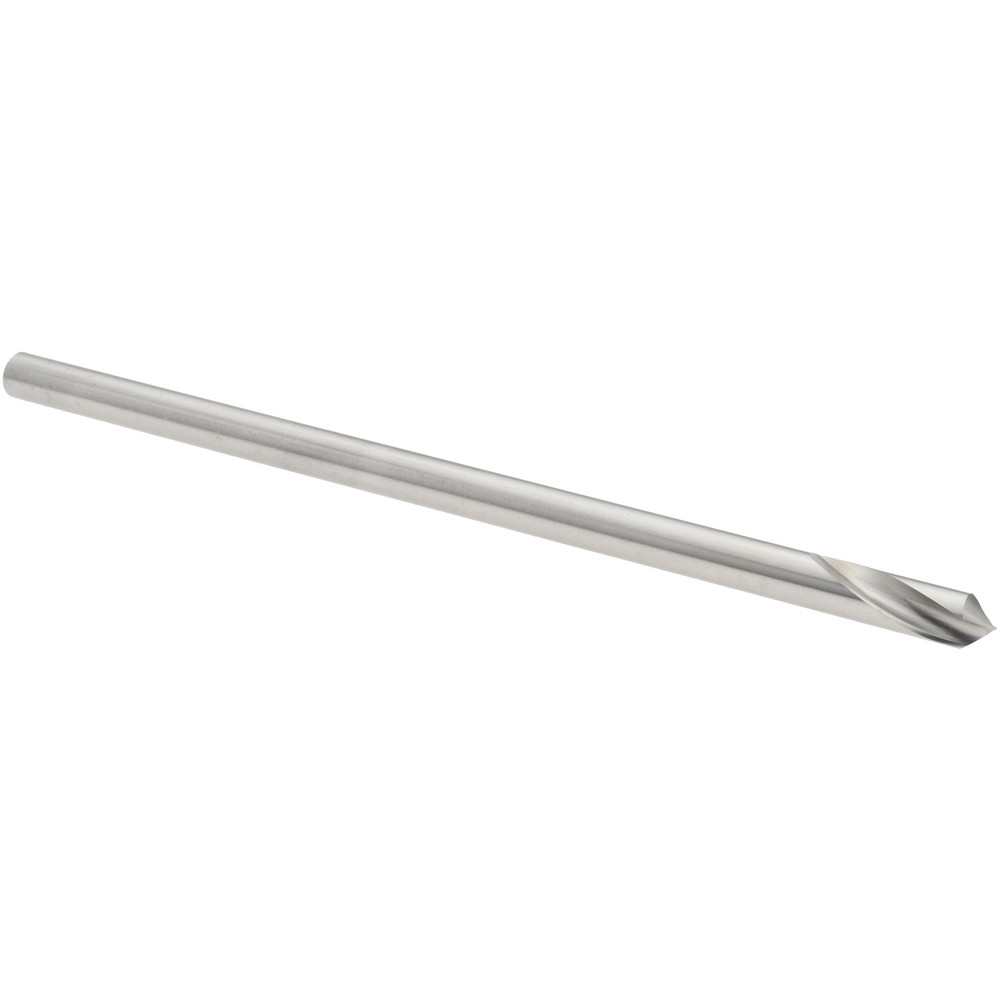

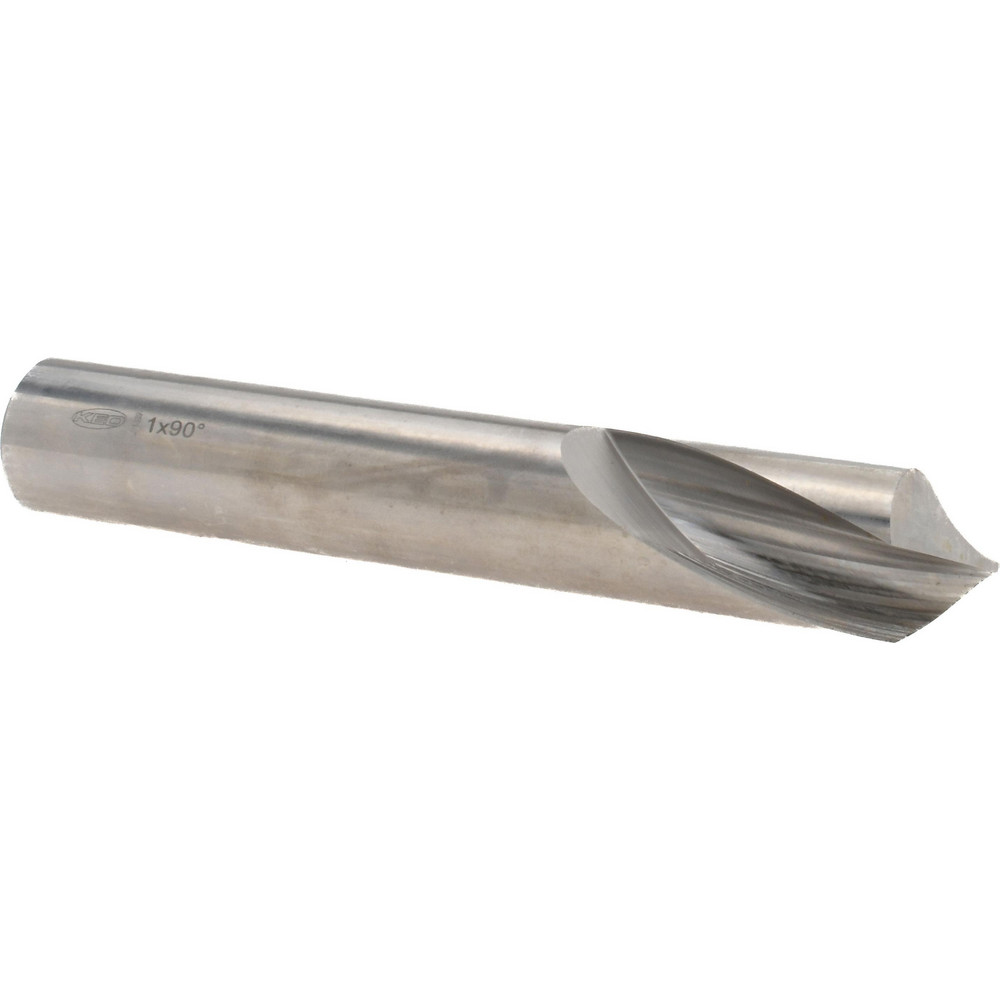

1-3/4" Flute Length, 1" Shank Dia, Bright/Uncoated Finish, Right Hand Cut, Series 197
| Drill Point Angle | 90 |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Overall Length (Inch) | 8 |
| Tool Material | Cobalt M-35 (HSS-E) |
| Coating/Finish | Bright/Uncoated |
| Single/Double Ended | Single |
| Series | 197 |
| Flute Length (Inch) | 1-3/4 |
| Cutting Diameter (Inch) | 1 |
| Shank Diameter (Fractional Inch) | 1 |
| Overall Length (Decimal Inch) | 8.0000 |
| Flute Length (Decimal Inch) | 1.7500 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Flute Type | Spiral |
| Number of Flutes | 2 |
| Shank Type | Straight-Cylindrical |
| Tool Performance | General Purpose |
| Tool Application | Spotting |
| Cutting Direction | Right Hand |
| Web Thinning | Web Thinned |
| Web Thickness | 0.1000 |
| UNSPSC Code | 23241600 |
| Country of Origin | France |
| MSC Number | MSC# 78690237 |
