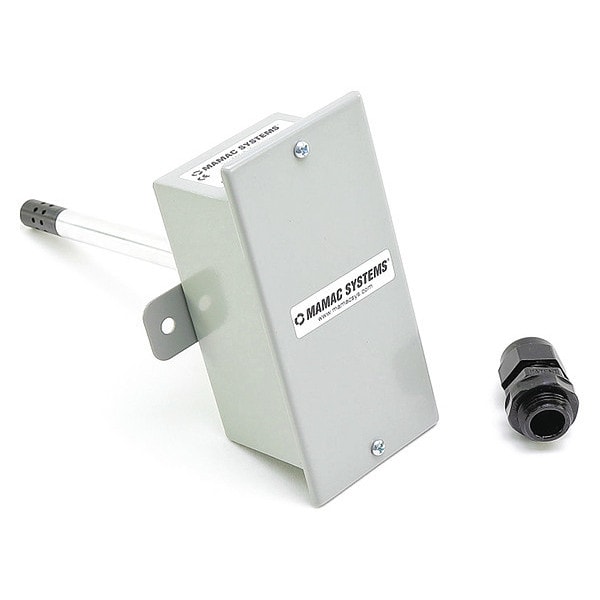

Transducer
| Item | Transducer |
|---|---|
| Fits Brand | MAMAC |
| Application | Humidifiers |
| Manufacturers Warranty Length | 5 yr |
| Standards | RoHS |
| Features | Proprietary Hydrophobic and Oleophobic EPTFE Filter to Protect the Sensing Element from Condensation Fog Salt Air Pollutants and Other Contaminants |
| Product Type | Transducer |
| Overall Width | 2-1/4 in |
| Humidity Accuracy | +/-2% or +/-3% RH |
| NEMA Rating | 4 |
| Compensated Temperature Range | -30 Degrees to 130 Degrees F |
| Hysteresis | +/-1% |
| Housing Color | Off-White |
| Wall Plate Style | Flush |
| Output | 0 to 5VDC/0 to 10VDC, 4 to 20mA |
| Power Required | 12 to 40 V DC, 12 to 35 V AC |
| Series | HU-224/225 |
| Housing Material | Plastic, Steel |
| IP Rating | IP65 |
| Housing Material Finish | Baked Enamel |
| Overall Height | 2-3/4 in |
| Power Source | 12 to 40V DC/12 to 35V AC |
| Power Type | Electrical |
| Relative Humidity Accuracy | +/-3% of Full Scale |
| RH Sensor | Capacitive |
| Electrical Connection Type | Hardwired |
| NIST Traceable Certificate | NIST Traceable Certified |
| Relative Humidity Range | 0 to 100% |
| Overall Depth | 4-1/2 in |
| Sensing Element Type | All-Polymer |
| Interface Type | Switch |
| Weight | 1 lb |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
