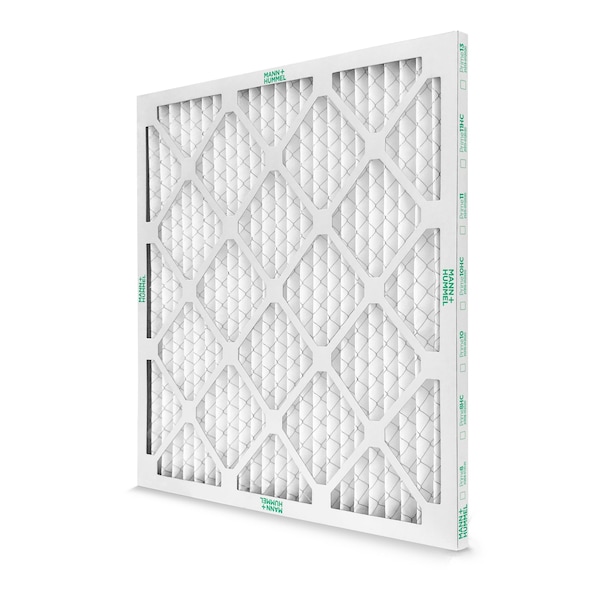

10x20x1 Pleated Air Filter, Standard Capacity, Synthetic Fibers, MERV 8, 1.0-3.0 µm
| Performance Rating | MERV 8 |
|---|---|
| Air Filter Capacity | Standard Capacity |
| Air Flow @ 300 fpm | 417 cfm |
| Media Material | Synthetic Fibers |
| Nominal Filter Size | 10x20x1 |
| Actual Filter Size | 9-1/2 in x 19-1/2 in x 3/4 in |
| Filters Out | Dust, Pollen, Mold spores, Lint, Dust mites, Concrete dust |
| Frame or Header Material | Beverage Board |
| Item | Pleated Air Filter |
| Nominal Depth | 1 in |
| Nominal Height | 20 in |
| Nominal Width | 10 in |
| Removes Particles Down To | 1.0-3.0 µm |
| Filter Efficiency - Air Filters | 3.0 - 10.0 microns 70-85% |
| Actual Width | 9-1/2 in |
| Initial Resistance @ 300 fpm | 0.18" w.g. |
| Actual Depth | 3/4 in |
| Actual Height | 19-1/2 in |
| Common Applications | HVAC |
| Pleats per Linear Foot | 13 |
| For Use With (Systems) | Residential, Light commercial, Office buildings, Retail stores, Small clinics, Schools, Light manufacturing, Warehouses |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
