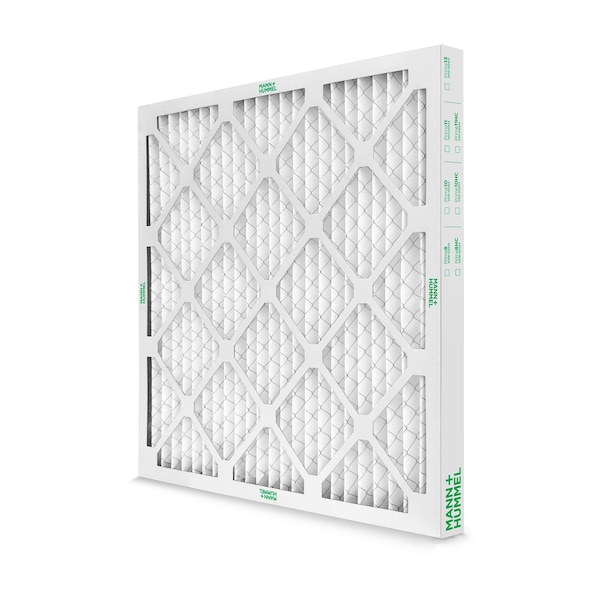

12x24x2 Pleated Air Filter, Standard Capacity, Synthetic Fibers, MERV 8, 1.0-3.0 µm
| Performance Rating | MERV 8 |
|---|---|
| Air Filter Capacity | Standard Capacity |
| Air Flow @ 300 fpm | 600 cfm |
| Media Material | Synthetic Fibers |
| Nominal Filter Size | 12x24x2 |
| Actual Filter Size | 11-3/8 in x 23-3/8 in x 1-3/4 in |
| Filters Out | Dust, Pollen, Mold spores, Lint, Dust mites, Concrete dust |
| Frame or Header Material | Beverage Board |
| Item | Pleated Air Filter |
| Nominal Depth | 2 in |
| Nominal Height | 24 in |
| Nominal Width | 12 in |
| Actual Depth | 1-3/4 in |
| Actual Width | 11-3/8 in |
| Actual Height | 23-3/8 in |
| Common Applications | HVAC |
| Removes Particles Down To | 1.0-3.0 µm |
| Pleats per Linear Foot | 10 |
| Filter Efficiency - Air Filters | 3.0 - 10.0 microns 70-85% |
| Initial Resistance @ 300 fpm | 0.12" w.g. |
| For Use With (Systems) | Residential, Light commercial, Office buildings, Retail stores, Small clinics, Schools, Light manufacturing, Warehouses |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
