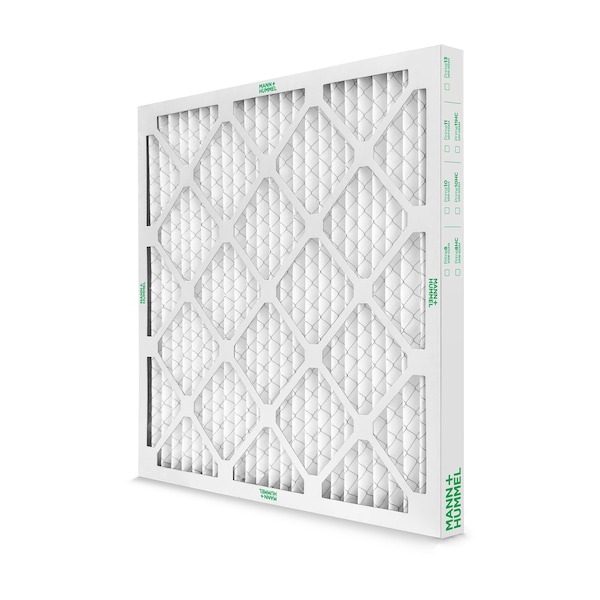

20x35x2 Pleated Air Filter, Standard Capacity, Synthetic Fibers, MERV 8, 1.0-3.0 µm
| Performance Rating | MERV 8 |
|---|---|
| Air Filter Capacity | Standard Capacity |
| Air Flow @ 300 fpm | 1,458 cfm |
| Media Material | Synthetic Fibers |
| Nominal Filter Size | 20x35x2 |
| Actual Filter Size | 19-1/2 in x 34-1/2 in x 1-3/4 in |
| Filters Out | Dust, Pollen, Mold spores, Lint, Dust mites, Concrete dust |
| Frame or Header Material | Beverage Board |
| Item | Pleated Air Filter |
| Nominal Depth | 2 in |
| Nominal Height | 35 in |
| Nominal Width | 20 in |
| Common Applications | HVAC |
| Pleats per Linear Foot | 10 |
| Actual Depth | 1-3/4 in |
| Initial Resistance @ 300 fpm | 0.12" w.g. |
| Actual Height | 34-1/2 in |
| Filter Efficiency - Air Filters | 3.0 - 10.0 microns 70-85% |
| Removes Particles Down To | 1.0-3.0 µm |
| Actual Width | 19-1/2 in |
| For Use With (Systems) | Residential, Light commercial, Office buildings, Retail stores, Small clinics, Schools, Light manufacturing, Warehouses |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
