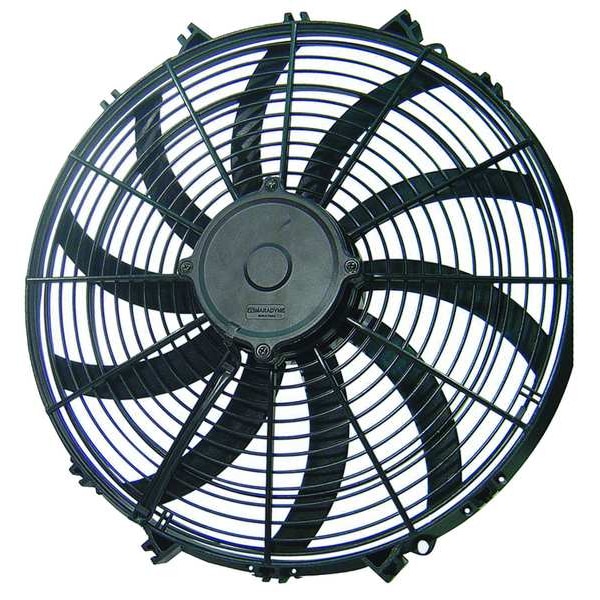

Cooling Fan, 14 Inch, 12 VDC, 1555 CFM
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Exhaust/Supply Fan Item | Exhaust Fan |
| Type | High Performance |
| Blade Dia. | 14 in |
| Fan Voltage | 12 V DC |
| Exhaust/Supply Fan Motor HP | 0.0938 HP |
| CFM @ 0.000-In. SP | 1,555 cfm |
| Number of Blades | 10 |
| Motor RPM | 2600 to 3200 |
| Propeller Material | Glass Filled Nylon |
| Full Load Amps | 10.1 |
| For Use With | OEM and Aftermarket AC Refrigeration Companies, OEM Car Kit Manufacturers and Aftermarket Dealers and Distributors of Radiators, Transmission and Oil Cooling Fans |
| CFM @ 0.125-In. SP | 1,400 cfm |
| Motor Enclosure | Totally Enclosed |
| Max. Ambient Temp. (F) | 200 |
| Mounting Position | Vertical |
| Watts | 160 |
| Drive Package Included | No |
| CFM @ 0.500-In. SP | 339 cfm |
| Item | Cooling Fan |
| CFM @ 0.250-In. SP | 1,200 cfm |
| Height (In.) | 15 |
| Bearing Type | Sleeve |
| CFM @ 0.375-In. SP | 800 cfm |
| Width (In.) | 14-1/2 |
| Max. Depth (In.) | 2-7/8 |
| Motor Type | DC |
| Standards | DIN EN 60529, IP68 |
| Includes | (4) 90 Degrees Mounting Feet, Nylon Tie Kit, Pigtail Connector, Rubber Spacers |
| Blade Diameter | 14 in |
| Maximum Ambient Operating Temperature | 200 deg F |
| Airflow @ 0.125 in SP | 1,400 cfm |
| Airflow @ 0.000 in SP | 1,555 cfm |
| Material | Nylon |
| Overall Depth | 2-7/8 in |
| Overall Diameter | 15 in |
| Full Load Current | 10.1 A |
| Motor Speed | 2,600 rpm |
| Motor Horsepower | 0.25 HP |
| Country of Origin (subject to change) | Turkey |
| Package Quantity | 1 |
