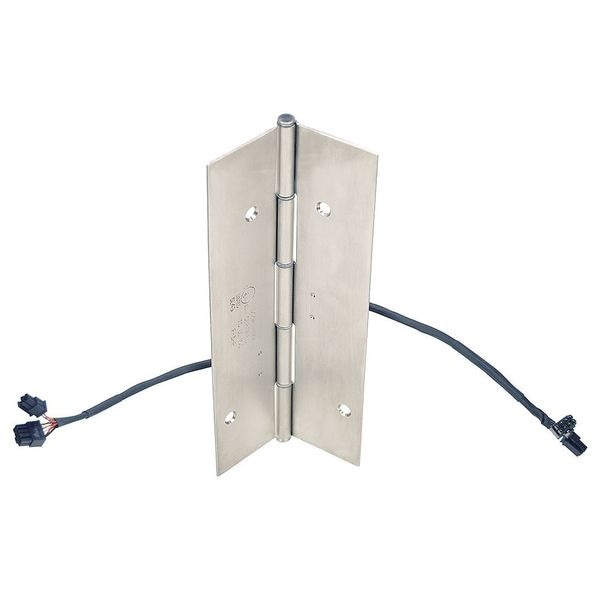

4 1/2 in W x 83 1/8 in H Dull Stainless Steel Electrified Hinge
| Item | Electrified Hinge |
|---|---|
| Finish | Dull Stainless Steel |
| Material | Stainless Steel |
| Features | Electrified Hinge; 12 Wire |
| Pin Material | 304 Stainless Steel |
| Frame Leaf Width | 4-1/2 in |
| Frame Leaf Height | 3-1/4 in |
| Range of Motion | 180 Degrees |
| Holes | With |
| Pin Dia. | 3/16 in |
| Ligature Resistant | No |
| Door Leaf Thickness | 0.079 in |
| Holes per Leaf | 20 |
| Door Leaf Width | 4-1/2 in |
| Frame Leaf Thickness | 0.079 in |
| Door Leaf Height | 3-1/4 in |
| Standards | ANSI/BHMA A156.26, UL Listed |
| Mounting | Full Mortise |
| Bearing Type | Sleeve |
| Orientation | Non Handed |
| Required Door Thickness | 1-3/4 in |
| Load Capacity | 600 lb |
| UL Fire Rating | UL10C |
| ANSI/BHMA Finish | Satin Stainless Steel |
| Hinge Type | Piano |
| Includes Hardware | Hardware Included |
| Number of Holes per Leaf | 20 |
| Pin Diameter | 3/16 in |
| Mounting Style | Full Mortise |
| Includes Holes | Holes Included |
| Range of Motion - Maximum | 180 Degrees |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
