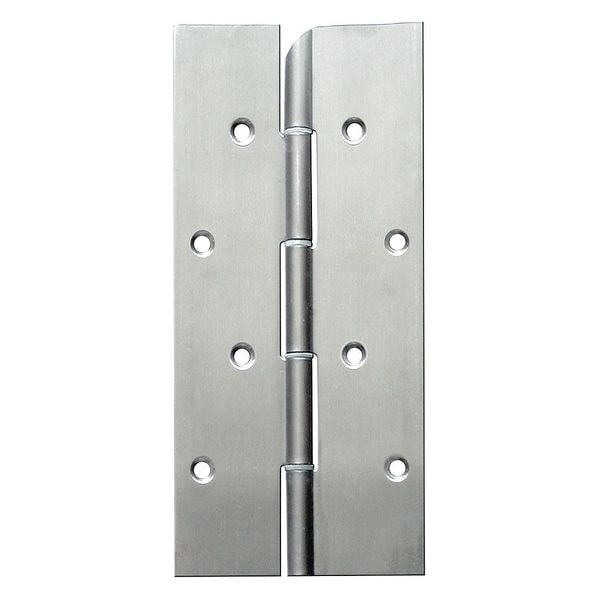

Door and Butt Hinge, 304 Stainless steel, Full Mortise Mounting, 4 1/2 in Leaf W x 120 in Leaf H
| Door Leaf Height | 120 in |
|---|---|
| Door Leaf Thickness | 0.105 in |
| Door Leaf Width | 4-1/2 in |
| Finish | Satin Stainless Steel |
| Holes per Leaf | 21 |
| Load Capacity | 900 lb |
| Material | 304 Stainless steel |
| Mounting | Full Mortise |
| Orientation | Non Handed |
| Pin Dia. | 3/16 in |
| Range of Motion | 180 deg |
| Required Door Thickness | 1-3/4 in |
| Features | Flanged Nylon Bearings; Edge Mount Security Hinge |
| Ligature Resistant | Yes |
| Standards | ANSI/BHMA A156.26, ANSI/SDI 250.13, ASTM E1886, ASTM E1996, ASTM E330, Florida Building Code Approved TAS 201, 202, 203 (old), Warnock Hersey |
| Frame Leaf Height | 120 in |
| Frame Leaf Width | 4-1/2 in |
| Frame Leaf Thickness | 0.105 in |
| Pin Material | 304 Stainless Steel |
| Holes | With |
| Overall Knuckle Height | 2 in |
| Item | Door and Butt Hinge |
| Pin Type | Barrel, Hospital Tip |
| Hardware | Mounting Included |
| UL Fire Rating | UL10C |
| Hinge Number | Not Applicable |
| Overall Width | Not Applicable |
| Hand Orientation | Non-Handed |
| ANSI/BHMA Finish | Satin Stainless Steel |
| Door Thickness - Minimum | 1-3/4 in |
| Pin Diameter | 3/16 in |
| Ligature-Resistant | Ligature-Resistant |
| Door Thickness - Maximum | 2-1/4 in |
| Fire Rating | 3 hr |
| Number of Holes per Leaf | 21 |
| Includes Hardware | Hardware Included |
| Range of Motion - Maximum | 180 deg |
| Mounting Style | Full Mortise |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
