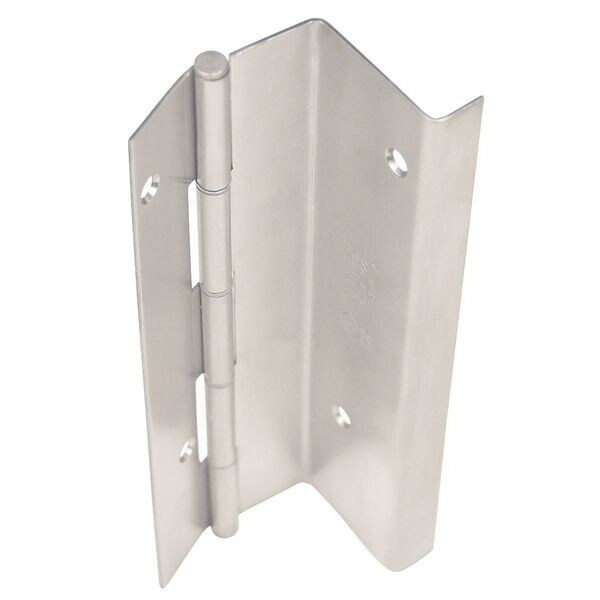

Door and Butt Hinge, 304 Stainless steel, Full Mortise Mounting, 4 1/2 in Leaf W x 83 1/8 in Leaf H
| Door Leaf Height | 83-1/8 in |
|---|---|
| Door Leaf Thickness | 0.079 in |
| Door Leaf Width | 4-1/2 in |
| Finish | Dull Stainless Steel |
| Holes per Leaf | 21 |
| Load Capacity | 600 lb |
| Material | 304 Stainless steel |
| Mounting | Full Mortise |
| Orientation | Non Handed |
| Pin Dia. | 3/16 in |
| Range of Motion | 180 deg |
| Required Door Thickness | 1-3/4 in |
| Features | 7/16 in dia Exterior Barrel |
| Holes | With |
| Item | Door and Butt Hinge |
| Ligature Resistant | No |
| Pin Material | Stainless Steel |
| Frame Leaf Thickness | 0.079 in |
| Frame Leaf Width | 4-1/2 in |
| Bearing Type | Sleeve |
| Frame Leaf Height | 83-1/8 in |
| Standards | ANSI/BHMA A156.26, Warnock Hersey |
| Hinge Number | Not Applicable |
| UL Fire Rating | UL10C |
| Overall Width | Not Applicable |
| Hand Orientation | Non-Handed |
| Mounting Style | Full Mortise |
| Resistance Properties | Corrosion-Resistant |
| Pin Diameter | 3/16 in |
| ANSI/BHMA Finish | Satin Stainless Steel |
| Includes Hardware | Hardware Included |
| Number of Holes per Leaf | 21 |
| Fire Rating | 3 hr |
| Door Thickness - Maximum | 1-3/4 in |
| Door Thickness - Minimum | 1-3/4 in |
| Range of Motion - Maximum | 180 deg |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
