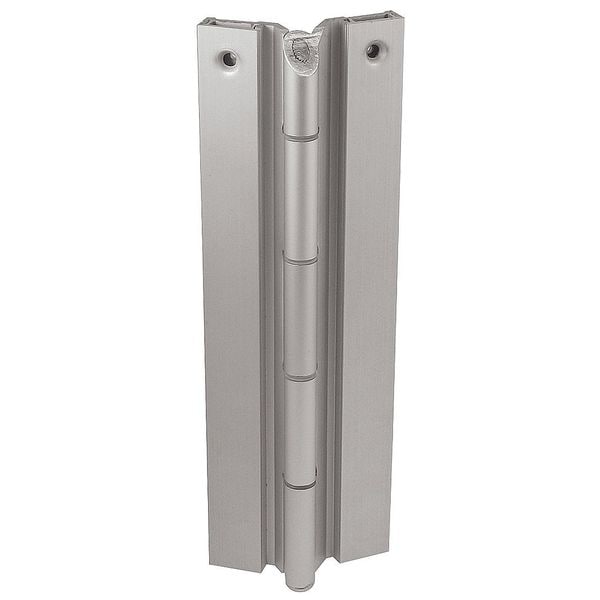

Piano Hinge, Aluminum Alloy, Full Surface Mounting, 1 5/8 in Leaf W x 8 ft Leaf H, Clear Anodized
| Door Leaf Height | 8 ft |
|---|---|
| Door Leaf Thickness | 1/8 in |
| Door Leaf Width | 1-5/8 in |
| Finish | Clear Anodized |
| Holes per Leaf | 24 |
| Load Capacity | 600 lb |
| Material | Aluminum Alloy |
| Mounting | Full Surface |
| Orientation | Left Hand |
| Pin Dia. | 3/16 in |
| Range of Motion | 180 deg |
| Required Door Thickness | 1-3/4 in |
| Features | Aluminum End Pins, Medical Bearings, No Exposed Mounting Fasteners, 1/8 in Inset, Not Fire Rated |
| Hole Spacing | 6 in |
| Frame Leaf Height | 8 ft |
| Item | Piano Hinge |
| Hardware | Yes |
| Standards | ANSI/BHMA A156.26 Grade 2 |
| Holes | With |
| Frame Leaf Width | 1-5/8 in |
| Pin Type | Hospital Tip |
| Pin Material | Stainless Steel |
| Overall Knuckle Height | 2 in |
| Ligature Resistant | Yes |
| Length | 96 in |
| Overall Width | 3-3/8 in |
| Frame Leaf Thickness | 1/8 in |
| Color | Aluminum |
| Width | 2-1/16 in |
| Hand Orientation | Left-Handed |
| Pin Diameter | 3/16 in |
| Number of Holes per Leaf | 24 |
| Range of Motion - Maximum | 180 deg |
| Hinge Length | 96 in |
| ANSI/BHMA Finish | Clear Anodized, Satin Aluminum |
| Includes Hardware | Hardware Included |
| Resistance Properties | Scratch-Resistant |
| Door Thickness - Maximum | 1-3/4 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
