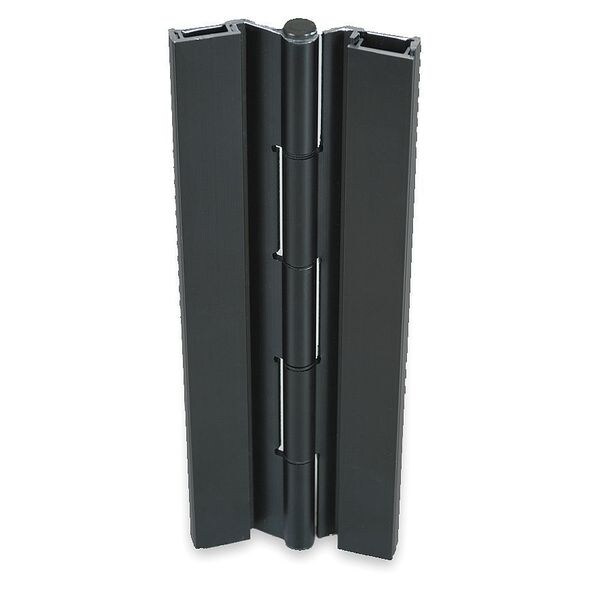

Piano Hinge, Aluminum Alloy, Full Surface Mounting, 1 5/8 in Leaf W x 8 ft Leaf H
| Door Leaf Height | 8 ft |
|---|---|
| Door Leaf Thickness | 0.438 in |
| Door Leaf Width | 1-5/8 in |
| Finish | Dark Bronze Anodized |
| Holes per Leaf | 0 |
| Load Capacity | 600 lb |
| Material | Aluminum Alloy |
| Mounting | Full Surface |
| Orientation | Non Handed |
| Pin Dia. | 1/4 in |
| Range of Motion | 180 deg |
| Required Door Thickness | 1-3/4 in |
| Features | Aluminum End Pins, Medical Bearings, No Exposed Mounting Fasteners |
| Item | Piano Hinge |
| Frame Leaf Height | 8 ft |
| Frame Leaf Width | 1-5/8 in |
| Overall Knuckle Height | 1 in |
| Standards | ANSI/BHMA A156.26 Grade 2 |
| Length | 8 ft |
| Ligature Resistant | No |
| Holes | Without |
| Overall Width | 3-3/8 in |
| Hardware | Yes |
| Frame Leaf Thickness | 0.438 in |
| Pin Type | Nonremovable |
| Pin Material | Stainless Steel |
| Color | Dark Bronze |
| Bearing Type | Split Nylon |
| Width | 2-1/4 in |
| Height | 96 in |
| Hand Orientation | Non-Handed |
| Number of Holes per Leaf | 0 |
| Hinge Length | 8 ft |
| Range of Motion - Maximum | 180 deg |
| ANSI/BHMA Finish | Oil Rubbed, Oxidized Satin Bronze-Plated |
| Pin Diameter | 3/16 in |
| Door Thickness - Maximum | 1-3/4 in |
| Removable Pin | No |
| Resistance Properties | Scratch-Resistant |
| Includes Hardware | Hardware Included |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
