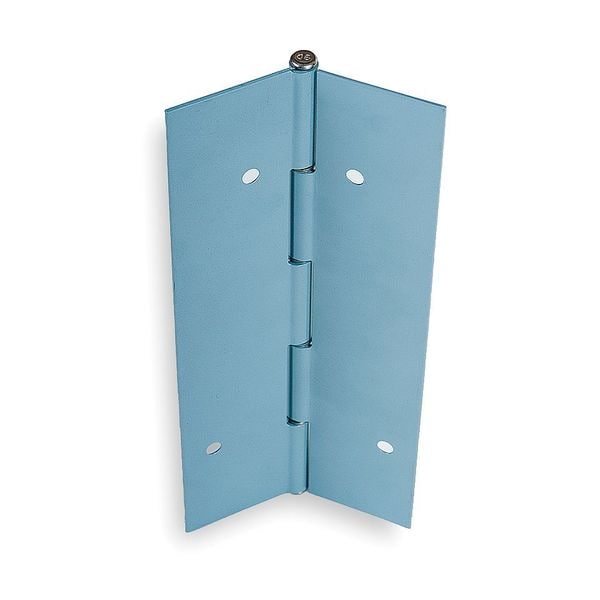

Piano Hinge, Carbon Steel, Full Mortise Mounting, 1 3/4 in Leaf W x 8 ft Leaf H, zinc plated
| Door Leaf Height | 8 ft |
|---|---|
| Door Leaf Thickness | 1/8 in |
| Door Leaf Width | 1-3/4 in |
| Finish | zinc plated |
| Holes per Leaf | 2 |
| Load Capacity | 600 lb |
| Material | Carbon Steel |
| Mounting | Full Mortise |
| Orientation | Non Handed |
| Pin Dia. | 1/4 in |
| Range of Motion | 180 deg |
| Required Door Thickness | 1-3/4 in |
| Features | Barrel Type Hinge; 3/16" Diameter Stainless Steel Pin(Rod); Medical Bearings; 14 Gauge Heavy Duty Material; 4" Maximum Door Width |
| Ligature Resistant | No |
| Overall Knuckle Height | 1 in |
| Holes | With |
| Frame Leaf Width | 1-3/4 in |
| Pin Material | Stainless Steel |
| Pin Type | Nonremovable |
| Hardware | Yes |
| Frame Leaf Height | 8 ft |
| Frame Leaf Thickness | 1/8 in |
| Item | Piano Hinge |
| Overall Width | 4-1/2 in |
| Standards | ANSI A250.13, ANSI/BHMA Standard A156.26 Grade 2, ASTM E1886, ASTM E1996, ASTM E330, TAS 201-94, TAS 202-94, TAS 203-94, UL listed |
| Length | 8 ft |
| UL Fire Rating | UL10C |
| Color | Gray |
| Width | 2-1/4 in |
| Bearing Type | Split Nylon |
| Height | 96 in |
| Hand Orientation | Non-Handed |
| Pin Diameter | 3/16 in |
| Resistance Properties | Scratch-Resistant |
| Removable Pin | No |
| Range of Motion - Maximum | 180 deg |
| Includes Hardware | Hardware Included |
| ANSI/BHMA Finish | Primed For Painting |
| Door Thickness - Maximum | 1-3/4 in |
| Hinge Length | 8 ft |
| Number of Holes per Leaf | 2 |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
