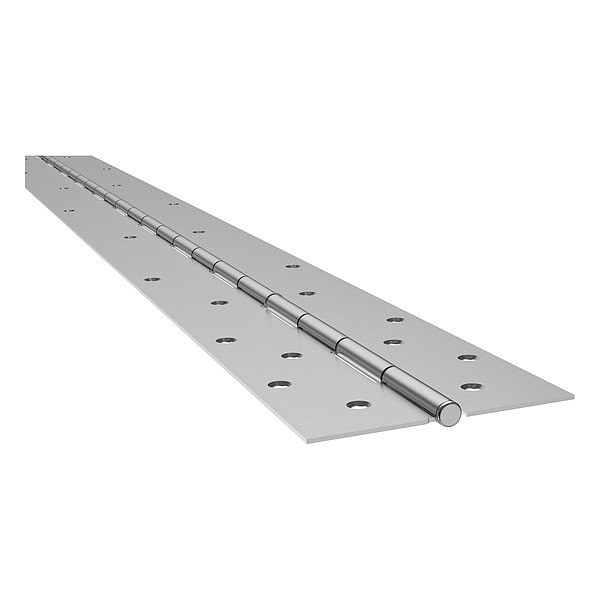

Piano Hinge, Stainless Steel, 8 ft Leaf Ht, 1 3/4 in Leaf W Unfinished
| Item | Piano Hinge |
|---|---|
| Material | Stainless Steel |
| Mounting | Full Mortise |
| Load Capacity | 600 lb |
| Range of Motion | 180 deg |
| Ligature Resistant | No |
| Finish | Unfinished |
| Holes per Leaf | 4 |
| Holes | With |
| Door Leaf Width | 1-3/4 in |
| Door Leaf Height | 8 ft |
| Frame Leaf Width | 1-15/16 in |
| Frame Leaf Height | 8 ft |
| Pin Dia. | 3/16 in |
| Orientation | Non Handed |
| Required Door Thickness | 1-3/4 in |
| Length | 95 ft |
| Includes Hardware | Hardware Included |
| Number of Holes per Leaf | 4 |
| Resistance Properties | Scratch-Resistant |
| Pin Diameter | 3/16 in |
| Range of Motion - Maximum | 180 deg |
| Features | 7/16 in dia Exterior Barrel, Fasteners Are Concealed When Door is Closed |
| Pin Material | Stainless Steel |
| Standards | ANSI/BHMA A156.26, ANSI/BHMA A156.26 Grade 1, ANSI/SDI 250.13 Certified, ASTM E1886 Certified, ASTM E1996 Certified, ASTM E330 Certified, Florida Building Code Approved TAS 201, 202, 203 (old) |
| Hand Orientation | Non-Handed |
| Door Thickness - Minimum | 1-3/4 in |
| Door Thickness - Maximum | 2 1/4 in |
| ANSI/BHMA Finish | Satin Stainless Steel |
| UL Fire Rating | UL10C |
| Hinge Length | 95 ft |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Package Quantity | 1 |
