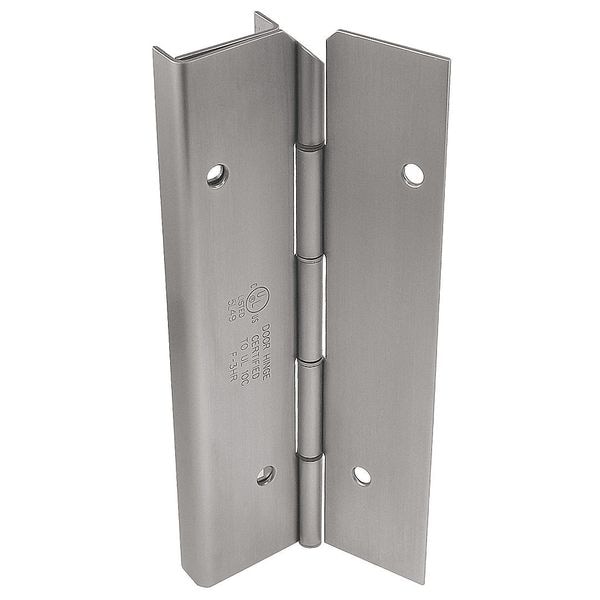

Piano Hinge, Stainless Steel, Full Mortise Mounting, 1 3/4 in Leaf W x 7 ft Leaf H
| Item | Piano Hinge |
|---|---|
| Door Leaf Height | 7 ft |
| Door Leaf Thickness | 0.083 in |
| Door Leaf Width | 1-3/4 in |
| Load Capacity | 600 lb |
| Ligature Resistant | Yes |
| Finish | Satin Stainless Steel |
| Holes per Leaf | 21 |
| Material | Stainless Steel |
| Mounting | Full Mortise |
| Holes | With |
| Frame Leaf Width | 1-3/4 in |
| Frame Leaf Height | 7 ft |
| Frame Leaf Thickness | 0.083 in |
| Range of Motion | 180 deg |
| Hardware | Included |
| Pin Dia. | 3/16 in |
| Pin Material | Stainless Steel |
| Pin Type | Hospital Tip |
| Overall Knuckle Height | 2 in |
| Orientation | Right Hand |
| Hole Spacing | 6 in |
| Required Door Thickness | 1-3/4 in |
| Length | 84 in |
| Standards | ANSI/BHMA A156.26, ANSI/SDI 250.13 Certified |
| Features | Exterior Barrel Diameter 0.438 in (7/16 in), Fasteners Are Concealed When Door is Closed, Stainless Steel End Pins |
| Overall Width | 4-1/2 in |
| Color | Satin |
| UL Fire Rating | UL10C |
| Width | 2-1/4 in |
| Hand Orientation | Right-Handed |
| Number of Holes per Leaf | 21 |
| Includes Hardware | Hardware Included |
| Range of Motion - Maximum | 180 deg |
| Fire Rating | 3 hr |
| Door Thickness - Minimum | 1-3/4 in |
| Resistance Properties | Scratch-Resistant |
| Door Thickness - Maximum | 1 3/4 in |
| Pin Diameter | 3/16 in |
| ANSI/BHMA Finish | Satin Stainless Steel |
| Hinge Length | 10 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
