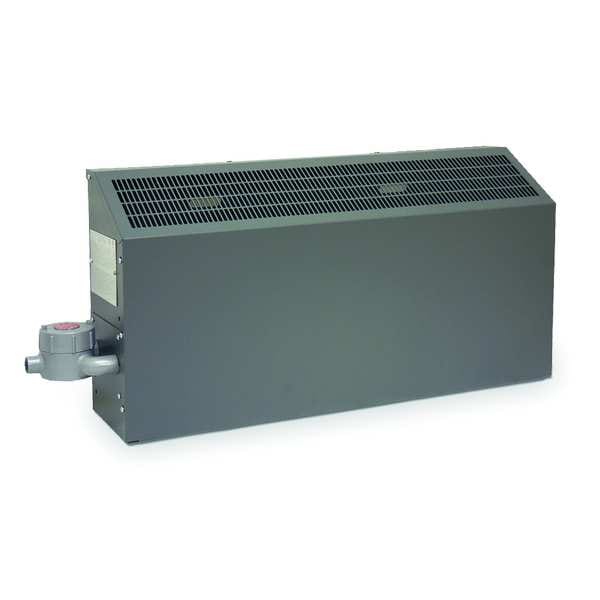

240VAC Hazardous-Location Electric Heater, 1 Phase, 31.7 Amps AC, 7.6 kW
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Heater Voltage | 240VAC |
| BtuH Output | 25,938 |
| kW | 7.6 |
| Item | Hazardous-Location Electric Heater |
| Amps AC | 31.7 A |
| Heater Type | Convection |
| Phase | 1 |
| Overall Height | 18 in |
| Overall Width | 64 in |
| Overall Depth | 9 in |
| Features | Cast Aluminum Terminal Enclosure, Stainless Steel Cartridge Element, Easy Access of Control Compartment, Heaters Can Be Installed On All Types of Wall Surfaces, Electric Explosion Proof Heaters |
| Cabinet Depth | 9 in |
| Manufacturers Warranty Length | 1 yr |
| Cabinet Height | 18 in |
| Includes | Mounting Bracket |
| Housing Finish | Powder Coated Epoxy Paint |
| Hz | 50/60 |
| Standards | ETL Listed for US and Canada |
| Cabinet Width | 58 in |
| Housing Material | Steel |
| Contactor Coil Voltage | 240 V AC |
| Voltage | 240 V AC |
| Wattage Output | 7.6 kW |
| Overall Dimensions - H x W x D | 18 in x 64 in x 9 in |
| Frequency | 50/60 Hz |
| Housing Color | Gray |
| Control Type | Thermostat |
| Amperage | 31.7 A |
| Cabinet Dimensions - W x H x D | 58 in x 18 in x 9 in |
| Hazardous Location Rating | Class I, Groups B, C and D, Division 1 and 2 |
| Heating Capacity | 25,938 BtuH |
| Voltage, Phase | 240V AC, 1-phase |
| Thermostat Included | No |
| Heating Method | Convection |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
