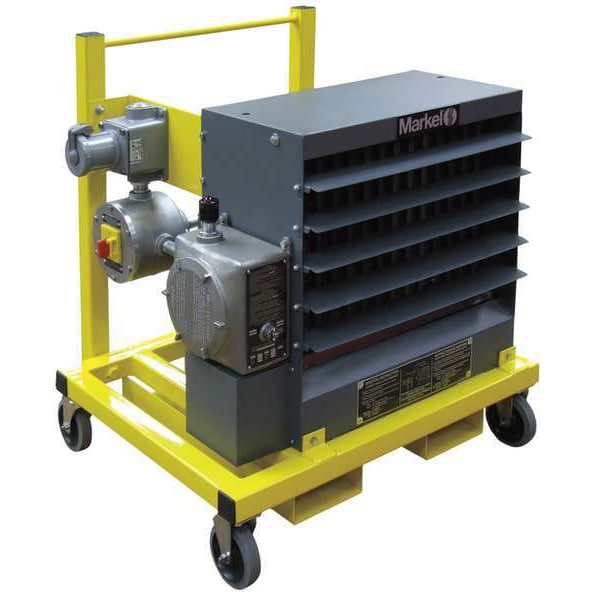

Hazardous-Location Electric Heater, 15KW, 240V AC, 3 Phase, 51,200 BtuH
| BtuH Output | 51,200 |
|---|---|
| Watts | 15KW |
| Heater Voltage | 240VAC |
| Heating Method | Fan Forced |
| Electric Heater Phase | 3 |
| Features | Hazardous Location Fan Forced Unit Heaters, Permanently Sealed, Liquid to Air, Finned Tube Heat Exchanger Core, High Performance Electric Motor Drives 3-Blade Aluminum Fan Blade, Heavy Duty 14-Gauge Steel Heater Cabinet, Powder Coated Epoxy Finish, Wheeled Cart is Constructed of Aluminum, 24 Volt Control and Built-in Thermostat, Durable Epoxy Coating on Heater Housing |
| Includes | Adjustable Louvers, Cart, Male or Female Plug, Manual Reset |
| Amps AC | 38.1 A |
| Standards | ETL Listed |
| Manufacturers Warranty Length | 1 yr |
| Phase | 3 |
| Hz | 60 |
| Voltage | 240 V |
| Heater Type | Fan Forced |
| kW | 15 |
| Item | Hazardous-Location Electric Heater |
| Color | Gray |
| Air Flow | 2,450 cfm |
| Air Temp. Rise | 19 deg F |
| Cabinet Dimensions - W x H x D | 30-3/8 in x 24-3/4 in x 22-1/2 in |
| Overall Depth | 25 in |
| Cabinet Depth | 22 1/2 in |
| Voltage, Phase | 240V AC, 3-phase |
| Contactor Coil Voltage | 24V AC |
| Amperage | 38.1 A |
| Wattage Output | 15 kW |
| Overall Height | 34 in |
| Heating Capacity | 51,200 BtuH |
| Control Type | Thermostat |
| Housing Finish | Epoxy Coated |
| Thermostat Included | Unit-Mounted |
| Housing Material | Steel |
| Overall Width | 32 in |
| Cabinet Height | 24 3/4 in |
| Frequency | 60 Hz |
| Housing Color | Gray, Yellow |
| Cabinet Width | 30 3/8 in |
| Overall Dimensions - H x W x D | 33-3/4 in x 32-1/4 in x 25-1/2 in |
| Hazardous Location Rating | Class I, Group C and D, Division 1 and 2; Class II, Group E, F and G, Division 1 and 2 |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
