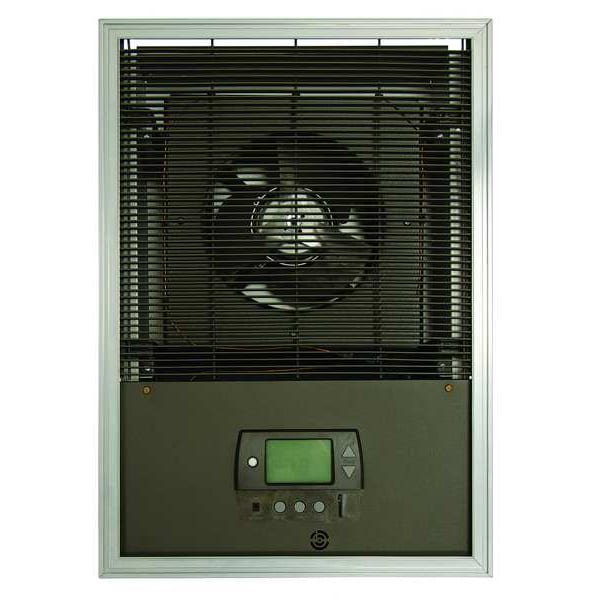

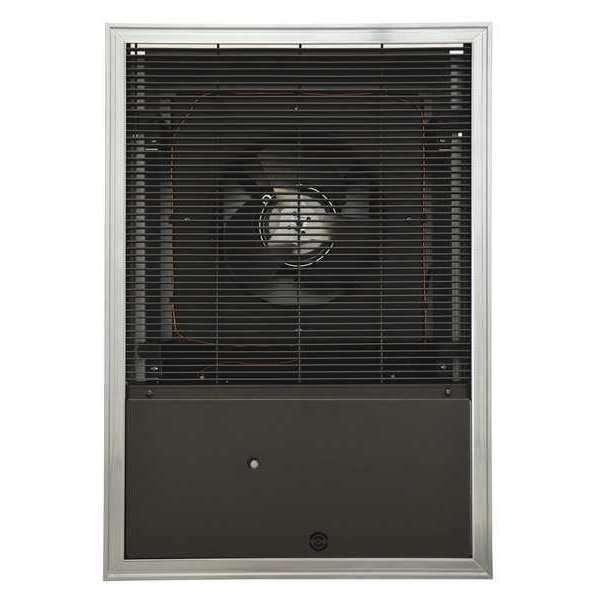

Recessed Electric Wall-Mount Heater, Recessed, 5000 W, 240V AC, Bronze
| Electric Heater Item | Electric Wall Heater |
|---|---|
| Electric Heater Type | Architectural Tamper Resistant |
| Watts | 5000 |
| BtuH | 17,052 |
| Heater Voltage | 240 V AC |
| Electric Heater Phase | 1 |
| Wall Opening Width | 14-1/4" |
| Color | Bronze |
| Amps AC | 20.8 |
| Wall Opening Depth | 4-1/4" |
| Grille Height | 25-1/16 in |
| Housing Height | 25 in |
| Item | Recessed Electric Wall-Mount Heater |
| Standards | ETL Listed for US and Canada |
| Wall Opening Height | 23-1/16 in |
| Mounting Type | Recessed |
| Hz | 60 |
| Features | Automatic Fan Delay Circuit, Manual Reset Thermal Limit Switch, Built-In Motion Sensor Thermostat, Set Back On Demand, Set Back Level Up to 12 Degrees F Differential, Learns Your Schedule Over Time and Self-Corrects, No Programming Required, Corrosion Resistant Steel Tubular Element with Brazed Steel Fins, 1400 rpm Motor Generating 245 CFM |
| Grille Width | 17-7/16 in |
| Grille Depth | 7/8 in |
| Finish | Powder Coated |
| Manufacturers Warranty Length | 1 yr |
| Air Temp. Rise | 64 deg F |
| Grille Material | Aluminum |
| Housing Depth | 4-1/2 in |
| Housing Width | 17-7/16 in |
| Voltage | 240V AC |
| Air Flow | 245 cfm |
| Phase | 1 |
| Heater Mounting Position | Vertical Burn |
| Heating Capacity | 17,065 BtuH |
| Amperage | 20.8 A |
| Control Type | Thermostat |
| Includes | Disconnect Switch, Thermostat |
| Thermostat Contact Type | Single Pole |
| Filter Included | No |
| Smart Connectivity | No Connectivity |
| Programming Capability | Programmable with Optional Thermostat |
| Heating Method | Fan Forced |
| Grille Finish | Powder Coated |
| Rough-In Dimensions - H x W x D | 23-1/16 in x 14-1/4 in x 4-1/4 in |
| Voltage, Phase | 240V AC, 1-phase |
| Wattage Field Convertible | No |
| Grille Color | Bronze |
| Remote Control Functions | No Remote Control Included |
| Minimum Mounting Height from Floor | 12 in |
| Thermostat Included | Tamper-Resistant Unit-Mounted |
| Rough-In Width | 14-1/4 in |
| Disconnect Switch | No |
| Thermal Overheat Protection | Manual Reset |
| Occupancy Sensor | Yes |
| Frequency | 60 Hz |
| Building Management System Compatible | Yes |
| Rough-In Depth | 4-1/4 in |
| Wattage Output | 5,000W |
| Automatic Fan Delay (On/Off) | Yes |
| Fan Only Operation | No |
| Tamper Resistant | Yes |
| Setback Control | Yes |
| Hold Function | No |
| Rough-In Height | 23-1/16 in |
| Housing Material | Steel |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
