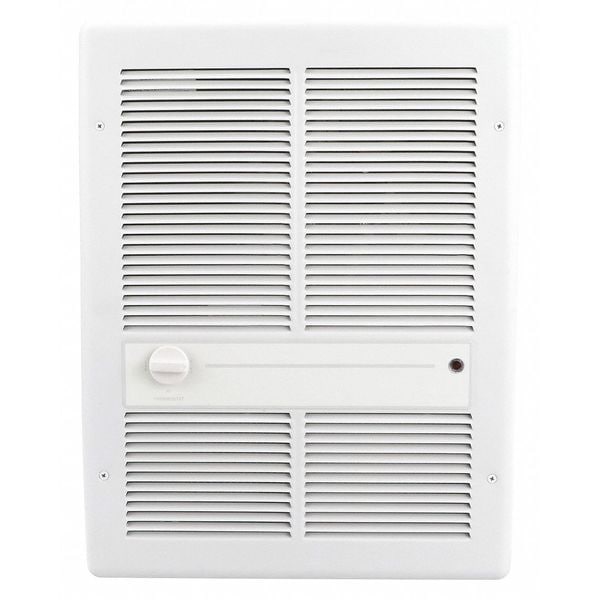

Recessed Electric Wall-Mount Heater, Recessed or Surface, 1500/4000 W, 208/240V AC, White
| Electric Heater Item | Electric Wall Heater |
|---|---|
| Electric Heater Type | Commercial/Industrial |
| Watts | 1500/4000 |
| BtuH | 5118/13,658 |
| Heater Voltage | 208/240 V AC |
| Electric Heater Phase | 1 |
| Wall Opening Width | 14-3/16" |
| Color | White |
| Amps AC | 7.2/16.8 |
| Wall Opening Depth | 4" |
| Grille Material | 18 ga Steel |
| Hz | 60 |
| Features | Automatic Reset Thermal Limit, Double Pole Built-In Thermostat, Steel Blocked Finned Element, 600 rpm/175 cfm, Made In America |
| Finish | Powder Coated |
| Housing Height | 19-3/4 in |
| Wall Opening Height | 19-15/16 in |
| Standards | ETL Listed for US and Canada |
| Housing Width | 13-7/8 in |
| Housing Depth | 3-3/4 in |
| Air Temp. Rise | 72 deg F |
| Item | Recessed Electric Wall-Mount Heater |
| Grille Width | 15-3/8 in |
| Grille Height | 20-1/8 in |
| Mounting Type | Recessed or Surface |
| Manufacturers Warranty Length | 1 yr |
| Grille Depth | 1 in |
| Voltage | 208/240V AC |
| Air Flow | 175 cfm |
| Phase | 1 |
| Includes | Thermostat |
| Amperage | 10.8 A/12.5 A, 5.4 A/6.2 A |
| Heating Method | Fan Forced |
| Occupancy Sensor | No |
| Thermostat Contact Type | Double Pole |
| Disconnect Switch | No |
| Automatic Fan Delay (On/Off) | Yes |
| Rough-In Depth | 4 in |
| Frequency | 60 Hz |
| Housing Material | Steel |
| Wattage Output | 1500 W/2000 W, 3000 W/4000 W |
| Heating Capacity | 6,826/13,648 BtuH |
| Grille Finish | Powder Coated |
| Programming Capability | Not Programmable |
| Voltage, Phase | 208/240V AC, 1-phase |
| Grille Color | White |
| Thermostat Included | Unit-Mounted |
| Filter Included | No |
| Wattage Field Convertible | Yes |
| Rough-In Width | 14-1/8 in |
| Control Type | Mechanical Selector Dial |
| Remote Control Functions | No Remote Control Included |
| Heater Mounting Position | Vertical Burn |
| Minimum Mounting Height from Floor | 10 in |
| Hold Function | No |
| Tamper Resistant | Yes |
| Thermal Overheat Protection | Automatic Reset |
| Smart Connectivity | No Connectivity |
| Fan Only Operation | No |
| Setback Control | No |
| Building Management System Compatible | No |
| Rough-In Dimensions - H x W x D | 19-1/2 in x 14-1/8 in x 4 in |
| Rough-In Height | 19-1/2 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
