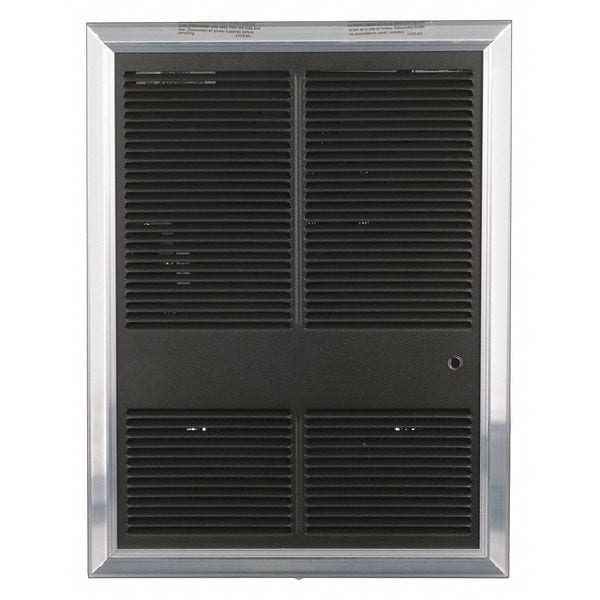

Recessed Electric Wall-Mount Heater, Recessed or Surface, 2250/3000 W, 208/240V AC, Brown/Aluminum
| Electric Heater Item | Electric Wall Heater |
|---|---|
| Electric Heater Type | Architectural |
| Watts | 2250/3000 |
| BtuH | 7650/10.240 |
| Heater Voltage | 208/240 V AC |
| Electric Heater Phase | 1 |
| Wall Opening Width | 14-3/16" |
| Color | Aluminum, Brown |
| Amps AC | 10.8/12.5 |
| Wall Opening Depth | 4" |
| Item | Recessed Electric Wall-Mount Heater |
| Hz | 60 |
| Manufacturers Warranty Length | 1 yr |
| Grille Depth | 1 in |
| Mounting Type | Recessed or Surface |
| Standards | ETL Listed for US and Canada |
| Wall Opening Height | 19-7/16 in |
| Housing Depth | 3-3/4 in |
| Features | Automatic Reset Thermal Limit, Single Pole Tamper-Proof Built-In Thermostat, Automatic Fan Delay Circuit, Disconnect Switch, Steel Block Finned Element, 600 rpm/175 cfm, Made In America |
| Grille Height | 20-13/16 in |
| Finish | Powder Coated |
| Housing Height | 19-5/16 in |
| Air Temp. Rise | 54 deg F |
| Grille Width | 15-7/8 in |
| Housing Width | 13-7/8 in |
| Grille Material | 18 ga Steel |
| Voltage | 208/240V AC |
| Air Flow | 175 cfm |
| Phase | 1 |
| Includes | Disconnect Switch, Thermostat |
| Thermostat Included | Tamper-Resistant Unit-Mounted |
| Occupancy Sensor | No |
| Heating Method | Fan Forced |
| Smart Connectivity | No Connectivity |
| Control Type | Mechanical Selector Dial |
| Fan Only Operation | No |
| Automatic Fan Delay (On/Off) | Yes |
| Hold Function | No |
| Amperage | 10.8 A/12.5 A |
| Rough-In Width | 14-1/8 in |
| Wattage Output | 2250 W/3000 W |
| Rough-In Depth | 4 in |
| Thermostat Contact Type | Single Pole |
| Frequency | 60 Hz |
| Wattage Field Convertible | Yes |
| Voltage, Phase | 208/240V AC, 1-phase |
| Setback Control | No |
| Heating Capacity | 7763/10,350 BtuH |
| Programming Capability | Not Programmable |
| Thermal Overheat Protection | Automatic Reset |
| Remote Control Functions | No Remote Control Included |
| Filter Included | No |
| Grille Color | Gray, Brown |
| Rough-In Height | 19-1/2 in |
| Building Management System Compatible | No |
| Minimum Mounting Height from Floor | 10 in |
| Housing Material | Steel |
| Grille Finish | Powder Coated |
| Heater Mounting Position | Vertical Burn |
| Disconnect Switch | Yes |
| Rough-In Dimensions - H x W x D | 19-1/2 in x 14-1/8 in x 4 in |
| Tamper Resistant | Yes |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
