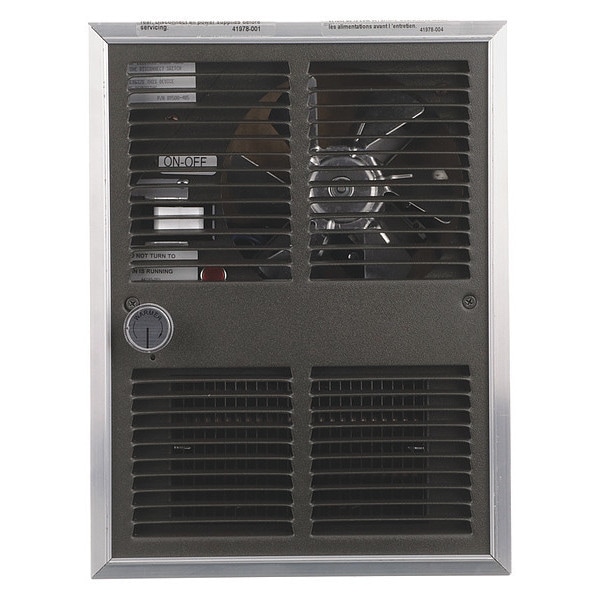

Recessed Electric Wall-Mount Heater, Recessed or Surface, 2250/500 W, 208V AC, Brown/Aluminum
| Electric Heater Item | Electric Wall Heater |
|---|---|
| Electric Heater Type | Architectural |
| Watts | 2250/500 |
| BtuH | 7680 |
| Heater Voltage | 208 V AC |
| Electric Heater Phase | 1 |
| Wall Opening Width | 9-1/4" |
| Color | Aluminum, Brown |
| Amps AC | 10.8 |
| Wall Opening Depth | 3-5/8" |
| Housing Width | 9 in |
| Finish | Powder Coated |
| Grille Width | 10 in |
| Housing Height | 12-1/8 in |
| Air Temp. Rise | 71 deg F |
| Grille Depth | 1 in |
| Mounting Type | Recessed or Surface |
| Hz | 60 |
| Manufacturers Warranty Length | 1 yr |
| Features | Manual Reset Thermal Limit, Double Pole Tamper-Proof Built-In Thermostat, Fan Purge Circuit, Disconnect Switch, Steel Block Finned Element, Approved for Wall or Ceiling Installation, 1060 rpm/100 cfm, Made In America |
| Grille Height | 13-1/8 in |
| Housing Depth | 3-3/8 in |
| Item | Recessed Electric Wall-Mount Heater |
| Grille Material | 18 ga Steel |
| Wall Opening Height | 12-1/8 in |
| Standards | ETL Listed for US and Canada |
| Voltage | 208V AC |
| Phase | 1 |
| Air Flow | 100 cfm |
| Includes | Disconnect Switch, Fan Purge, Thermostat |
| Rough-In Dimensions - H x W x D | 12-1/8 in x 9-1/4 in x 3-5/8 in |
| Grille Finish | Powder Coated |
| Rough-In Width | 9-1/4 in |
| Minimum Mounting Distance from Ceiling | 6 in |
| Voltage, Phase | 208V AC, 1-phase |
| Rough-In Height | 12-1/8 in |
| Filter Included | No |
| Amperage | 10.8 A |
| Programming Capability | Not Programmable |
| Tamper Resistant | Yes |
| Heating Capacity | 7,680 BtuH |
| Wattage Output | 500 W/750 W/1000 W/1250 W/1500 W/1750 W/2250 W |
| Hold Function | No |
| Remote Control Functions | No Remote Control Included |
| Wattage Field Convertible | Yes |
| Minimum Mounting Height from Floor | 6 in |
| Disconnect Switch | Yes |
| Frequency | 60 Hz |
| Setback Control | No |
| Fan Only Operation | No |
| Thermostat Included | Unit-Mounted |
| Thermostat Contact Type | Single Pole |
| Automatic Fan Delay (On/Off) | Yes |
| Heating Method | Fan Forced |
| Control Type | Mechanical Selector Dial |
| Heater Mounting Position | Horizontal Burn |
| Thermal Overheat Protection | Manual Reset |
| Occupancy Sensor | No |
| Grille Color | Gray, Brown |
| Rough-In Depth | 3-5/8 in |
| Smart Connectivity | No Connectivity |
| Building Management System Compatible | No |
| Housing Material | Steel |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
