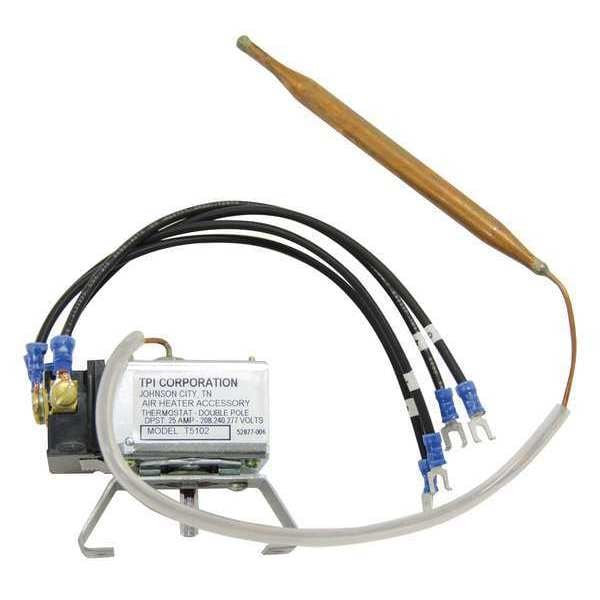

Thermostat, 38 ft., 3-1/2"D x 5"W, DPST
| Amps AC | 25 A |
|---|---|
| Temp. Range | 60 to 120 deg F |
| Mounting Type | Unit Mounted |
| Hz | 50/60 |
| Fits KW | 3 to 5 |
| Voltage Range | 208 to 600 |
| Phase | 1, 3 |
| Floor Coverage Dia. | 38 ft. |
| Width | 5 in |
| Item | Electric Wall & Ceiling Heater Thermostat |
| Depth | 3-1/2 in |
| Includes | Knob, Remote Capillary Temperature Sensor, Wire Leads |
| Switch Type | DPST |
| Height | 8 in |
| For Use With | Mfr. No F2F5103N, HF2B5103N, F2F5105N, HF2B5105N |
| Overall Width | 3/4 in |
| Thermostat Control Type | Mechanical Selector Dial |
| Housing Color | Black |
| Thermostat Control Voltage | 120/277V AC |
| Thermostat Control Range | 40 to 120 deg F |
| Overall Height | 4-1/2 in |
| Overall Depth | 2-1/4 in |
| Programming Capability | Not Programmable |
| Overall Dimensions - H x W x D | 4-1/2 in x 3/4 in x 2-1/4 in |
| Number of Poles | 2 |
| Contact Rating | 24 to 277V AC |
| Max. Operating Temp. | 120 deg F |
| Thermostat Control Amperage | 25 A |
| Voltage | 120 to 277V AC |
| Compatible Manufacturer Model Number | F2F5103N, F2F5105N |
| Maximum Operating Temperature | 120 deg F |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
